LR1 Payload

FreeFlySKU: 950-00147

The LR1 Payload is well suited for high-resolution mapping and imaging missions with the Freefly Astro.

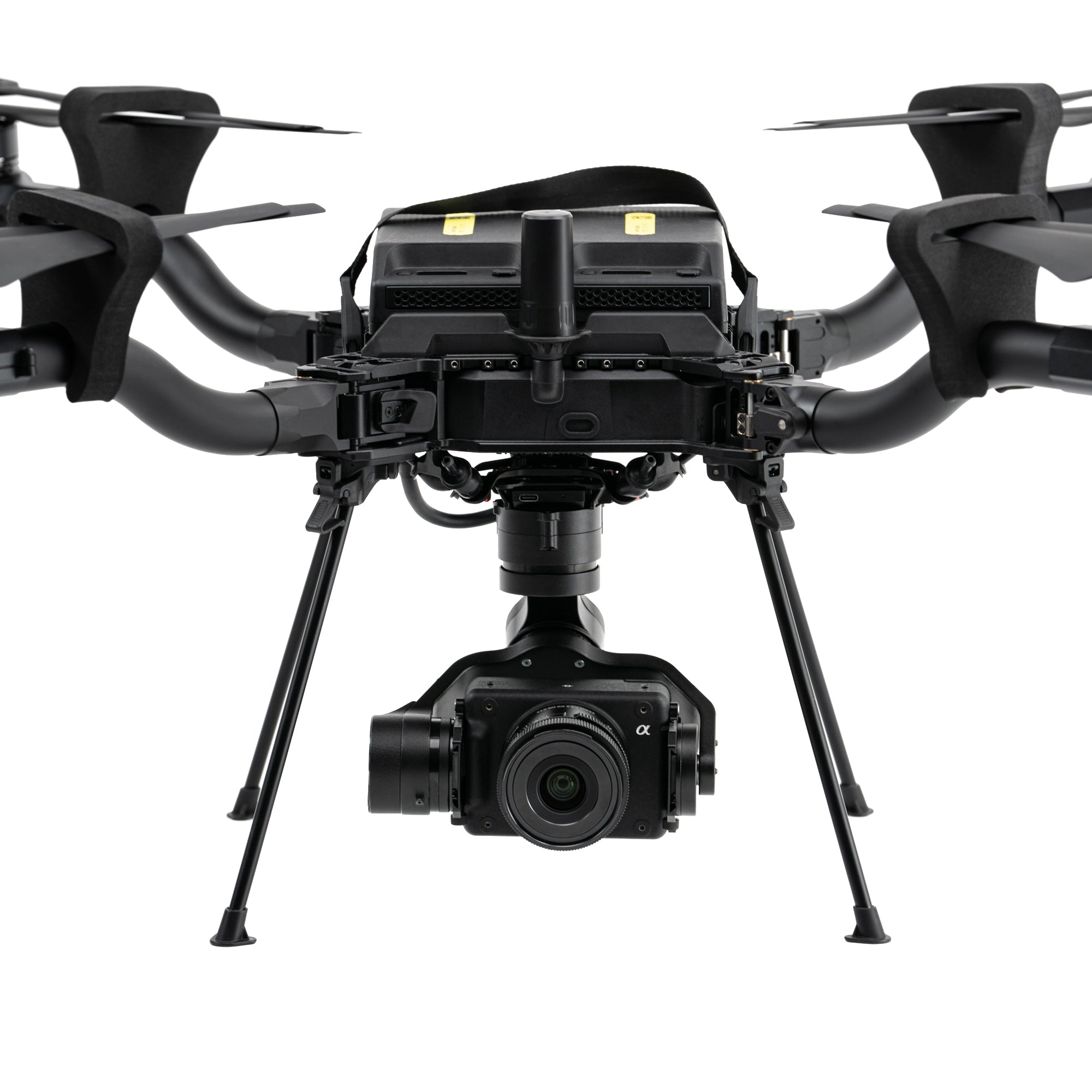

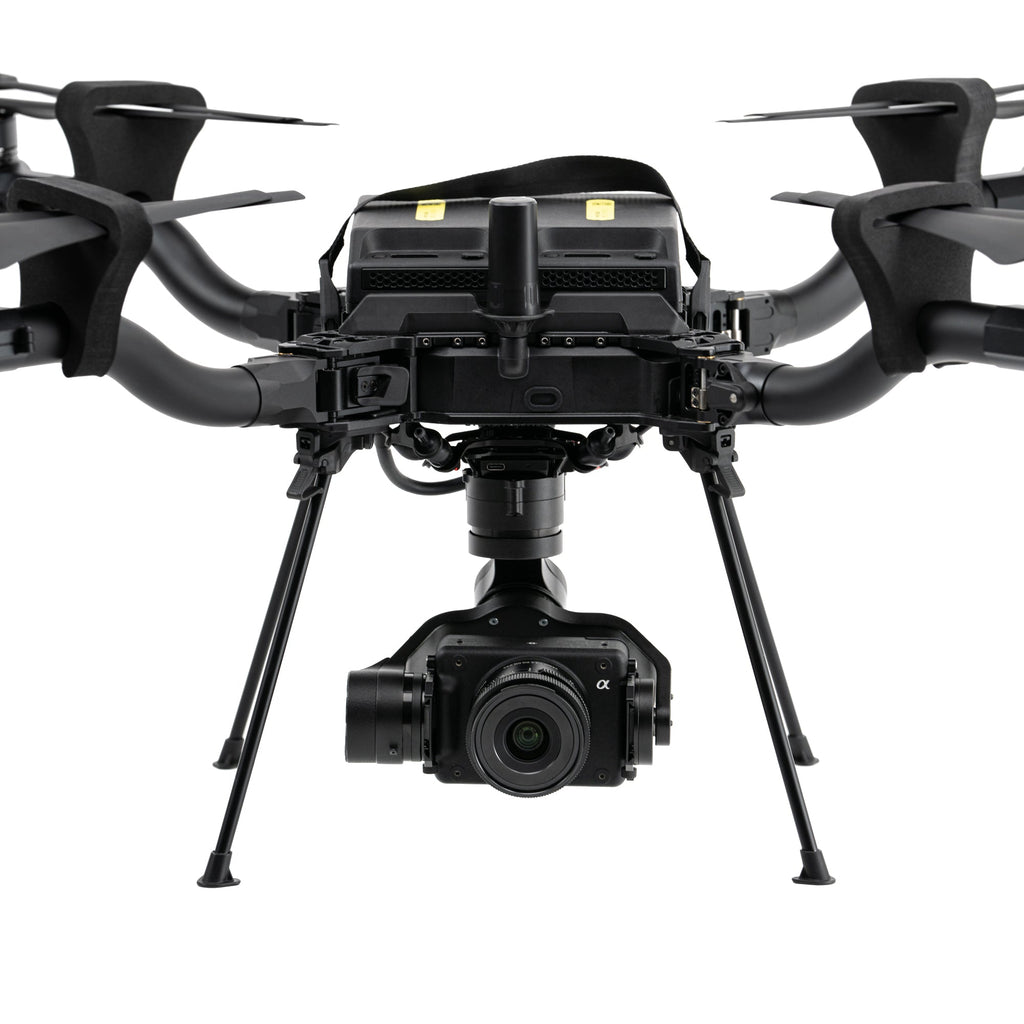

The LR1 Payload natively mounts to your Astro with the Freefly Smart Dovetail system.* This connection provides power and data communication from the camera to the the ground station controller (and LTE network) for camera controls (camera settings and shutter), gimbal control (tilt), and image preview.

Price:
$7,495.00
Request Quote

Government Customers:

Government customers are eligible for 30 days terms based on the issuance of a confirmed original purchase order on government letterhead. If you are a government agency and will be issuing a purchase order with 30 day terms, please notify your account manager. Credit terms for government agencies are not automatic so please discuss with your Blue Skies Drones account manager when submitting your order. All orders placed on terms must be shipped to a verifiable government address and will require adult signature.

Non-Government Customers:

Blue Skies Drones accepts credit card payments, money orders, certified checks, and wire transfers for customer purchases according to the following schedule below:

Credit Card Payments: Up to $5,000 can be charged on a credit card without incurring additional fees.

  • All credit card orders must be shipped to the credit card's billing address and will require a signature upon delivery.
  • Any amount above $5,000 requires another payment option below.

Wire Transfers: You can use a wire transfer to pay any Blue Skies Drones invoice. Please contact us for a quote to get wire transfer information

Money Order or Certified Check: You can mail a money order or certified check to: Blue Skies Drones, 1319 Grand Avenue, Centralia, WA 98531

Please fill out the quote request form to begin the purchase process.

If this product is Special Order - This product takes time to order.

Please note all Special Orders are shipped out in the order they are received. Due to supply delays, we cannot confirm a shipment date at this time. Special Order Items are not cancellable nor returnable.

Talk to an Expert



Dale Hylton - Sales Engineer
10 Years Drone Experience

844-474-8833 x2

The LR1 Payload is well suited for high-resolution mapping and imaging missions with the Freefly Astro.

The LR1 Payload natively mounts to your Astro with the Freefly Smart Dovetail system.* This connection provides power and data communication from the camera to the the ground station controller (and LTE network) for camera controls (camera settings and shutter), gimbal control (tilt), and image preview.

The payload is adjustable and expandable, and supports multiple lenses and for different applications, as well as expansion ports for add-on cameras, sensors, and power out.

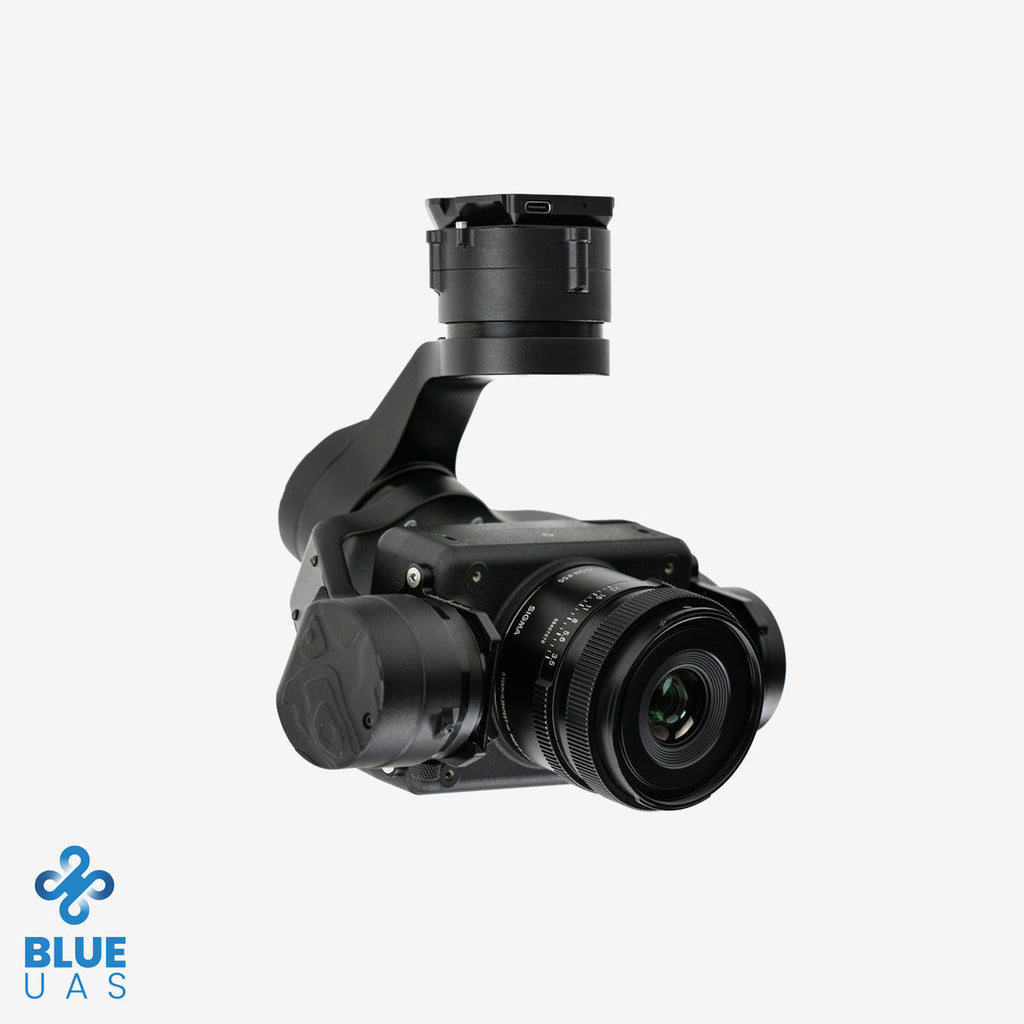

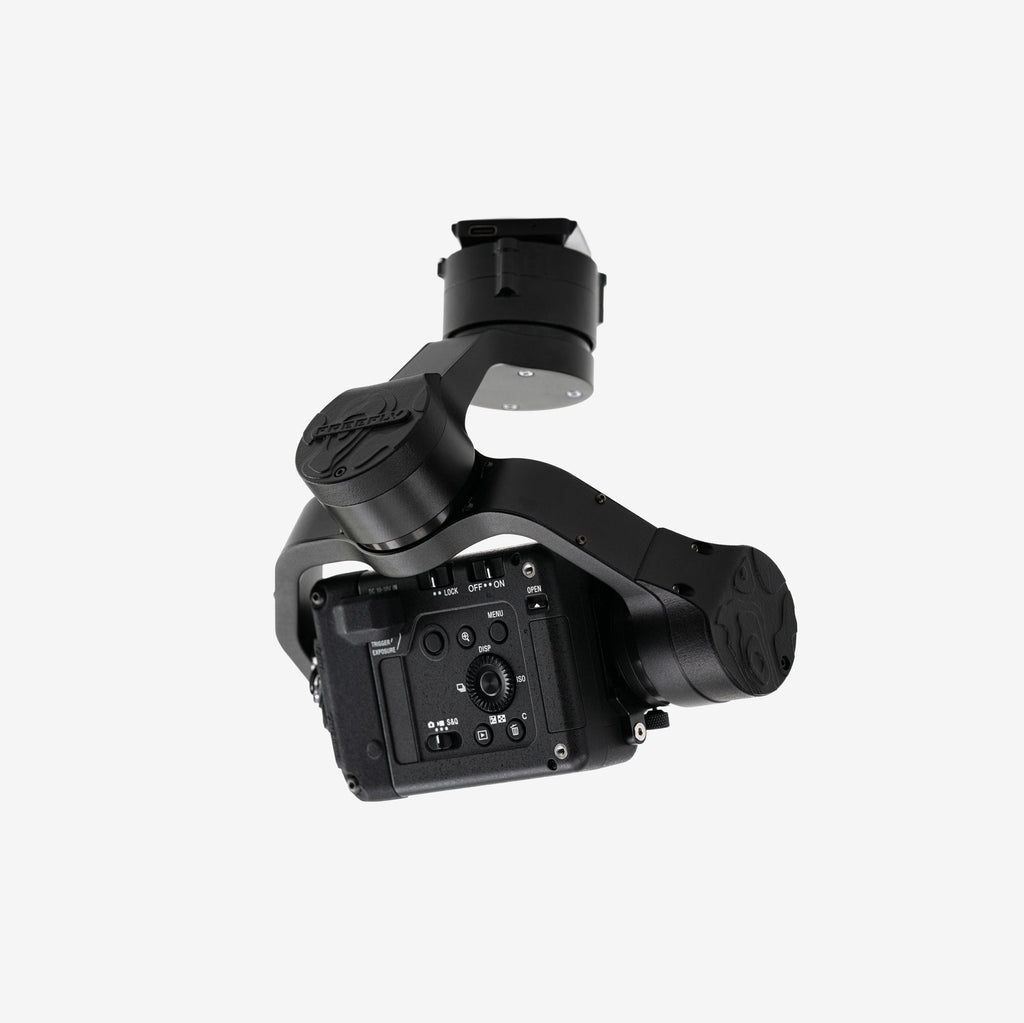

Each LR1 Payload includes a Freefly gimbal with a pre-installed 61MP Sony ILX-LR1, a 24mm lens, a USB drive to capture geo-tagged images, and a travel case with a custom foam insert.

 Notes

  • The payload is tuned to work best on Astro with the Astro Isolator.
  • The LR1 Payload is not available without the camera/lens, nor is it practical or advised to disassemble the payload to use the camera for other purposes.
  • This payload is DIU Blue approved.
  • Operation of add-on modules attached to the LR1 require appropriate counterweight.

*If you are buying this for an Astro you already have, and it doesn't have the Astro Isolator, you will need to purchase one in order to mount it to your Astro.

  1. LR1 Payload for Freefly Astro Series
    • 61MP Sony ILX-LR1 camera + Sigma 24mm f3.5 lens
    • Quick-detach, vibration isolated Freefly gimbal
    • NDAA and DIU approved

LR1 Payload:

  • Qty 1 - Freefly Gimbal
  • Qty 1 - Sony ILX-LR1 - 61MP Sony ILX-LR1 camera + Sigma 24mm f3.5 lens. Quick-detach, vibration isolated Freefly gimbal. NDAA and DIU Approved
  • Qty 1 - Sigma 24mm f3.5 mapping lens (p/n 404965)
  • Qty 1 - USB - C thumb drive
  • Qty 1 - Foam insert set for Astro Travel Case
  • Ships in rugged travel case with room for 2 additional lenses
  • Freefly Gimbal with Smart Dovetail Quick-Release
  • Sony Sony ILX-LR1 camera body installed in gimbal (61 megapixel resolution)
  • Sigma 24mm f3.5 mapping lens (p/n 404965)d
  • Lightweight at only 970g / 34.2oz
  • Camera and gimbal control from pilot controller (not included with payload, Pilot Pro controller ships with every new Astro)
  • Typical Astro flights with Mapping Payload are 28-34 minutes (depending on speed / conditions / lens), per pair of batteries
  • Three expansion ports for additional cameras/sensors/power

Payload is designed and assembled in USA. NDAA and DIU Blue approved.
