JZ M3D Quick Search Kit (Spotlight & Speaker) for DJI Dock 2 (M3D, M3TD)

JZSKU: JZ-M3D-QSK

The JZ M3D Quick Search Kit is a compact, powerful 3-in-1 combo, featuring a high-volume Speaker and a Spotlight with customizable RGB flashing. Despite its size, the speaker delivers clear sound up to 300 meters with a 120dB max level, while the spotlight boasts a 30% brighter 3400 lumens beam, reaching over 200 meters. Enhanced with a 10% increase in light transmittance and a wide-angle, 1-kilometer visible flash, this kit seamlessly integrates with the DJI M3D series.

Price:
Sale price$1,199.00
Stock:
Coming Soon

Talk to an Expert



Dale Hylton - Sales Engineer
10 Years Drone Experience

844-474-8833 x2

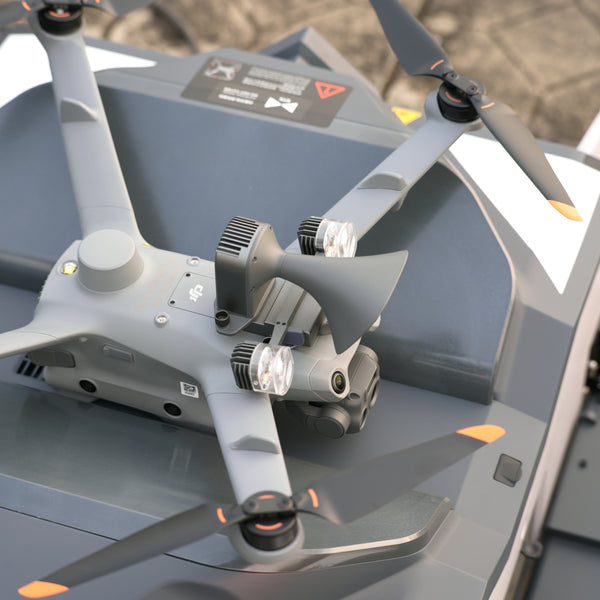

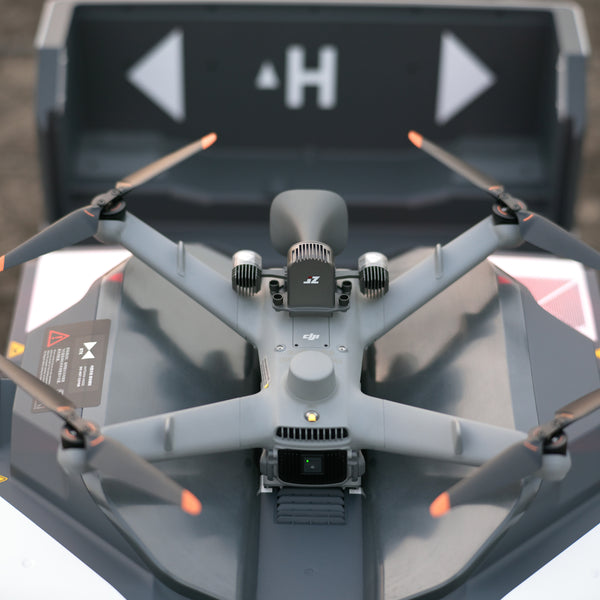

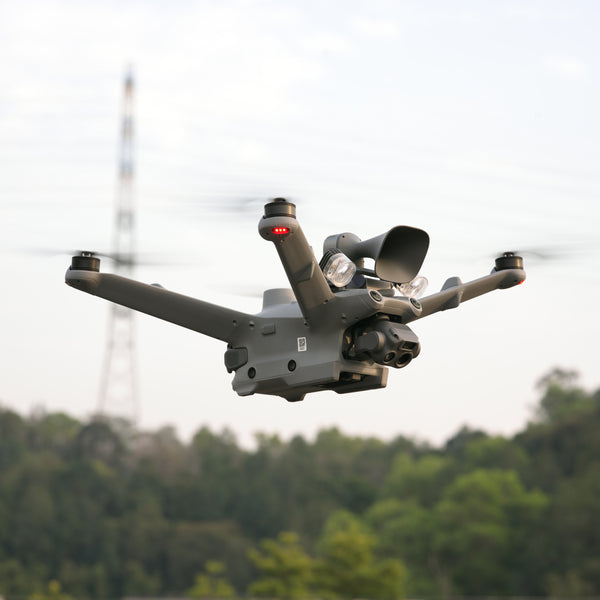

Introducing the JZ M3D Quick Search Kit, the latest innovation in JZ's 3-in-a combo kits, featuring a Spotlight, Speaker, and vibrant flashing lights within a compact design. This kit is designed to be lighter, smaller, and more powerful, offering the versatility to use the Spotlight and Speaker either together or separately.

The JZ H1E speaker is also fully compatible with the DJI Mavic 3 Enterprise, DJI Matrice 30 Series, Matrice 350 RTK, and DJI Dock. Despite its small size, the speaker boasts an impressive maximum sound pressure level of 120dB, with clear audio transmission up to 328 yards away.

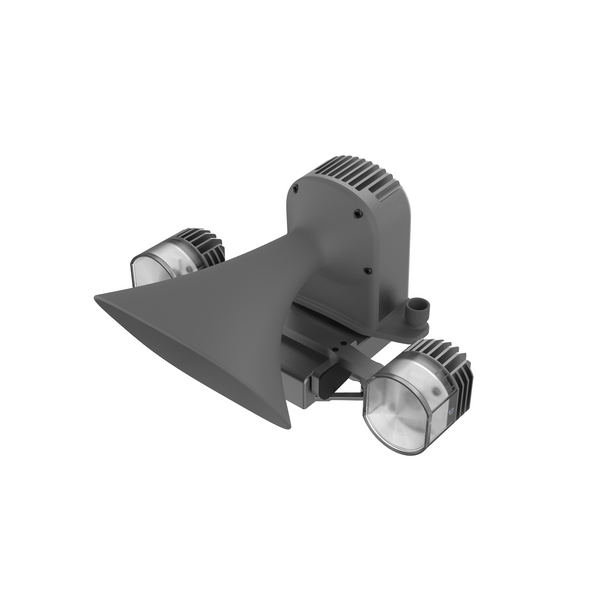

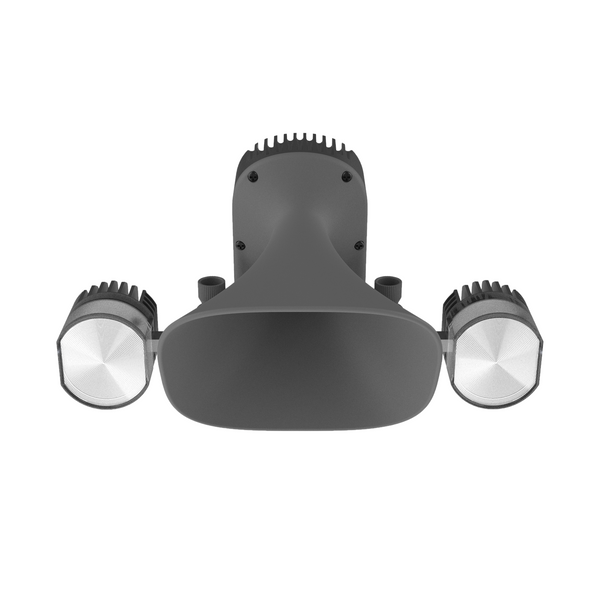

The T30S spotlight is engineered with a fully transparent front cover and a refined lens configuration, reducing the lens group from four to two pieces to enhance light transmission by 10%. With custom-designed laser lamp beads, the central brightness is increased by 30% to 3400 lumens. The spotlight's also features a 14° long-focus beam effectively lighting up areas over 218 yards away.

Additionally, the light comes equipped with 8 RGB beads, offering customizable color flashes. With a maximum power of 15W and a 90° wide-angle flash, ensuring a visible distance of up to 0.62 miles, enhancing safety and visibility during operations.

  • JZ Speaker for M3D/T x1

Electrical interface

  • DJI SDK

Controls

  • DJI Pilot 2, DJI FlightHub 2

Installation

  • Quick-release screw

Size(T30S+H1E)

  • 138 x 116 x 78 mm

Weight(T30S+H1E)

  • 190g

Ingress Protection

  • IP54

Supported models

  • DJI DOCK 2, DJI M3D, DJI M3TD

Maximum power consumption

  • >=30W

Lighting Lumens

  • 3400 Lumens

Lighting angle (T30S Light)

  • 14°

Controllable Angle (T30S Light)

  • 0 ° to -90 ° controllable pan tilt

Gimbal & Camera Linkage (T30S Light)

  • Yes

Flash Colors

  • 5 Colors set: Red, Green, Blue, Yellow, White

Lighting distance

  • 50m, 100m, 150m

Lighting area

  • 113m²,471㎡,1063㎡

Central illuminance

  • 30Lux, 7Lux, 3Lux

Broadcasting distance (H1E Speaker)

  • >300m

Max Sound pressure (H1E Speaker)

  • 120db

Internal Storage

  • 32GB

Configurations

  • Can be used as either a Speaker & Spotlight System or separately.
