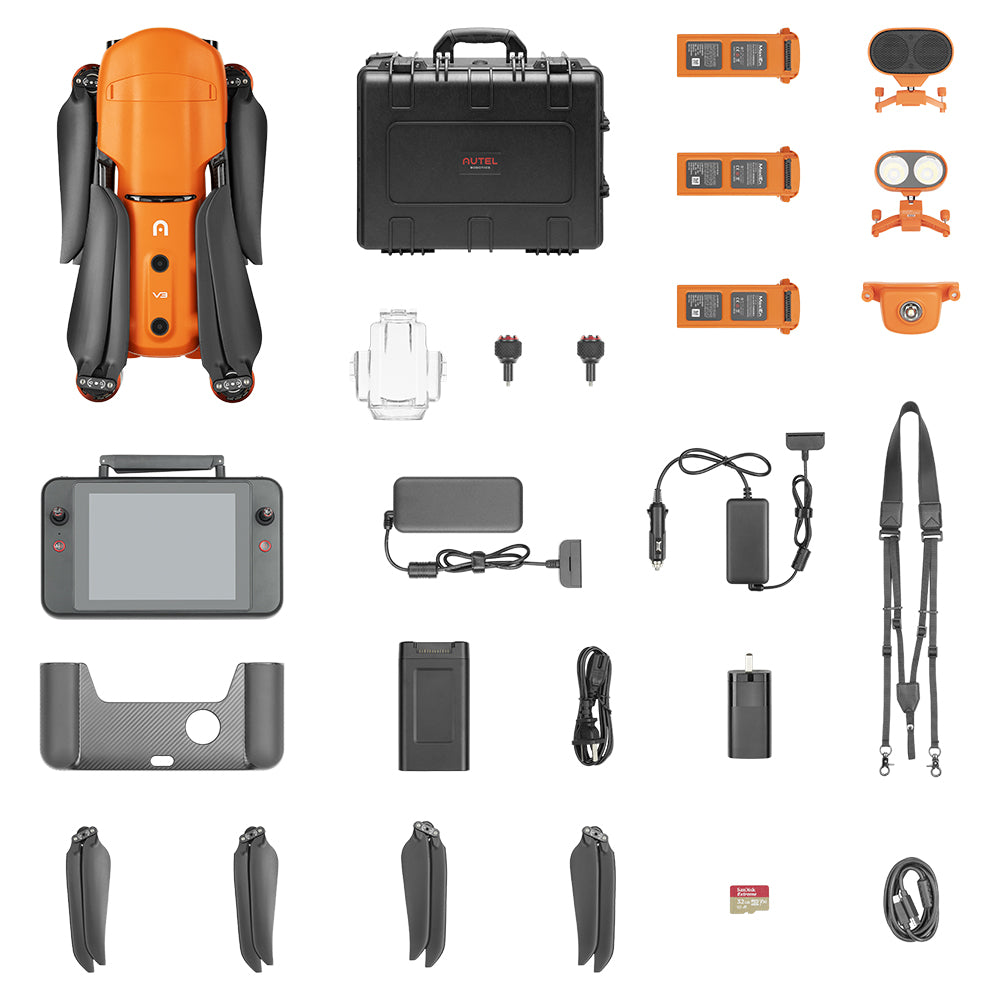

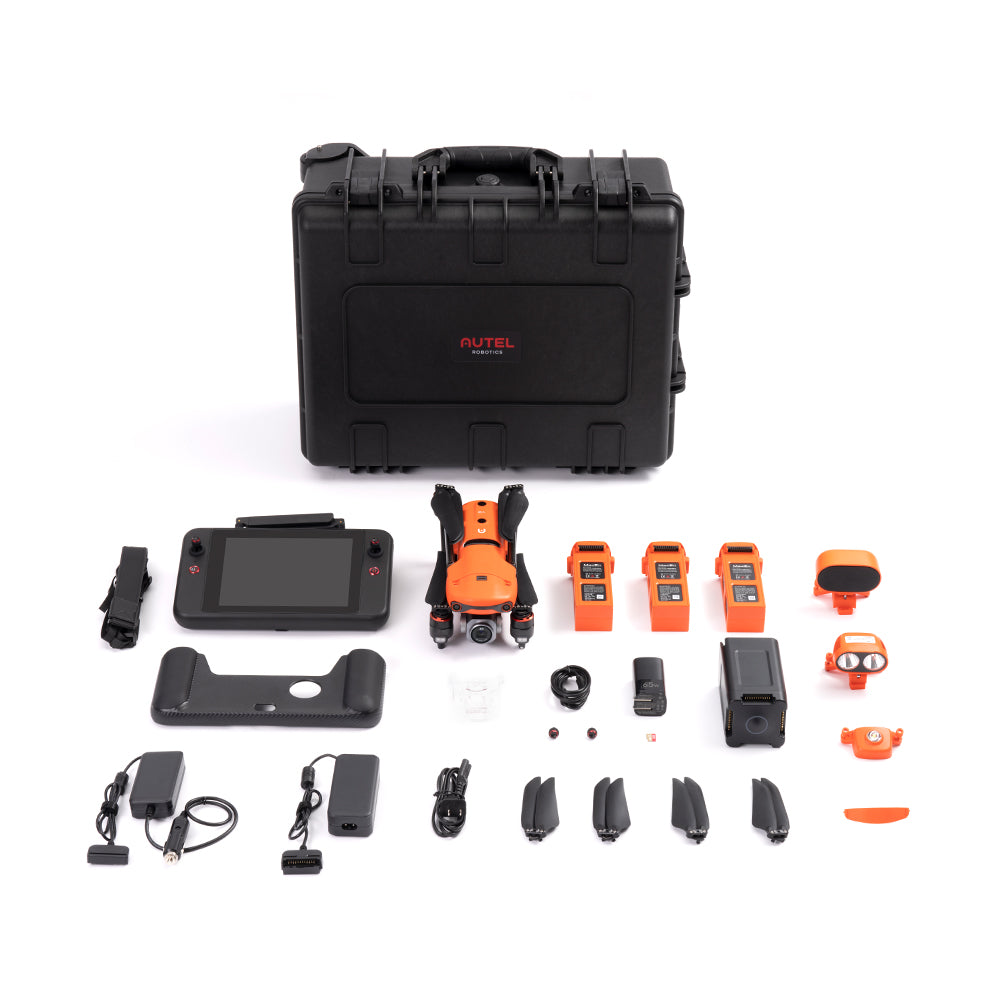

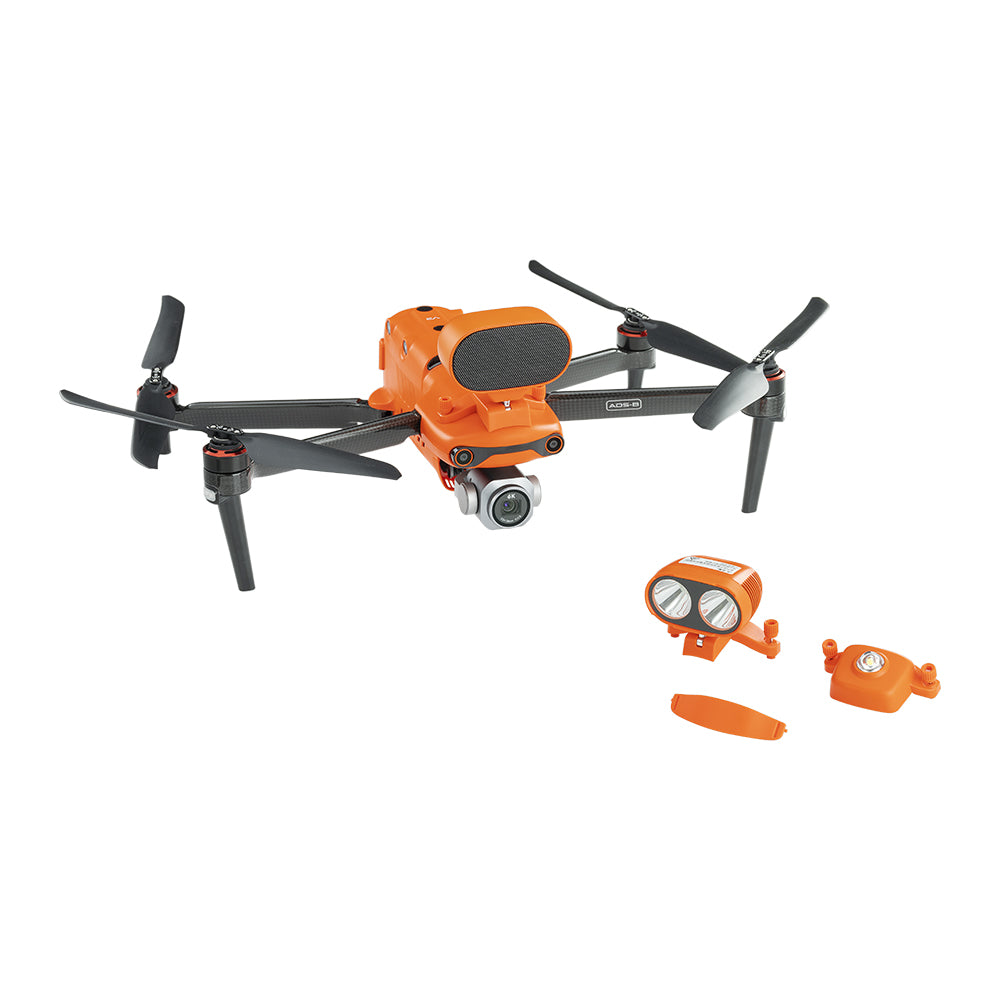

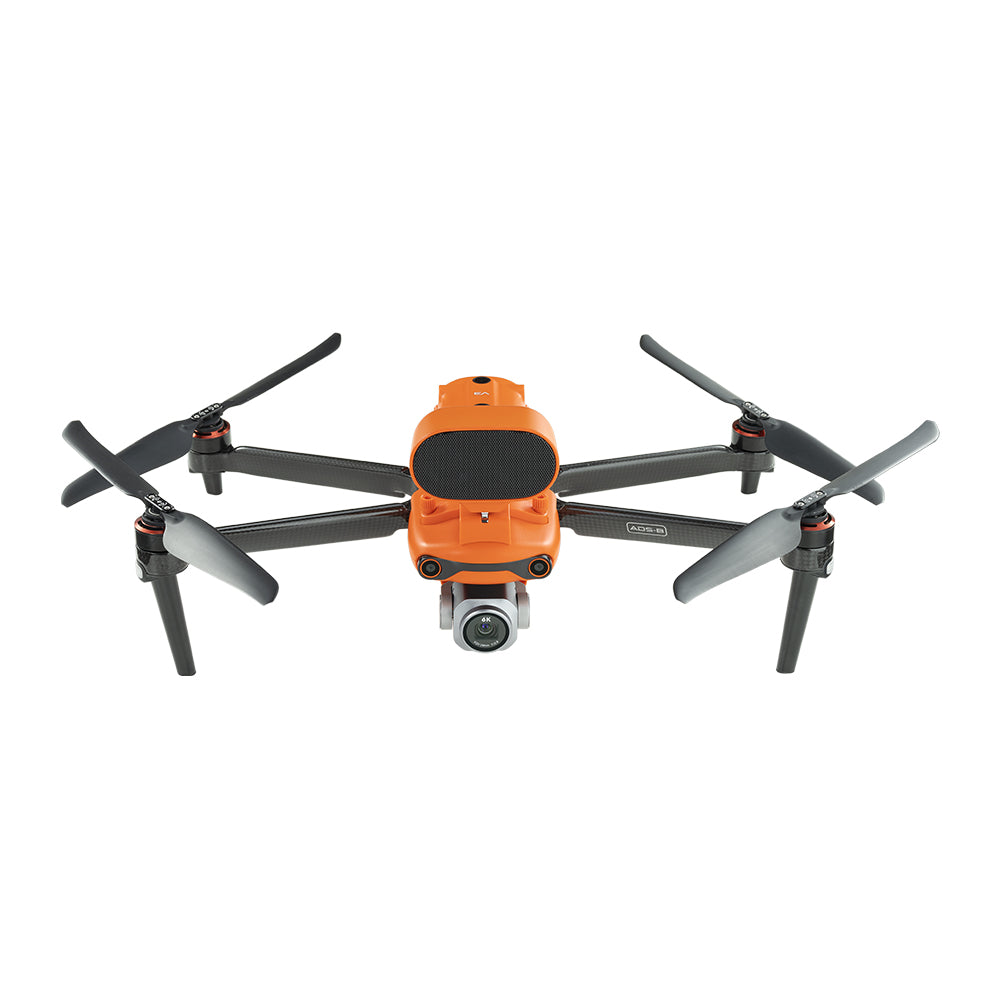

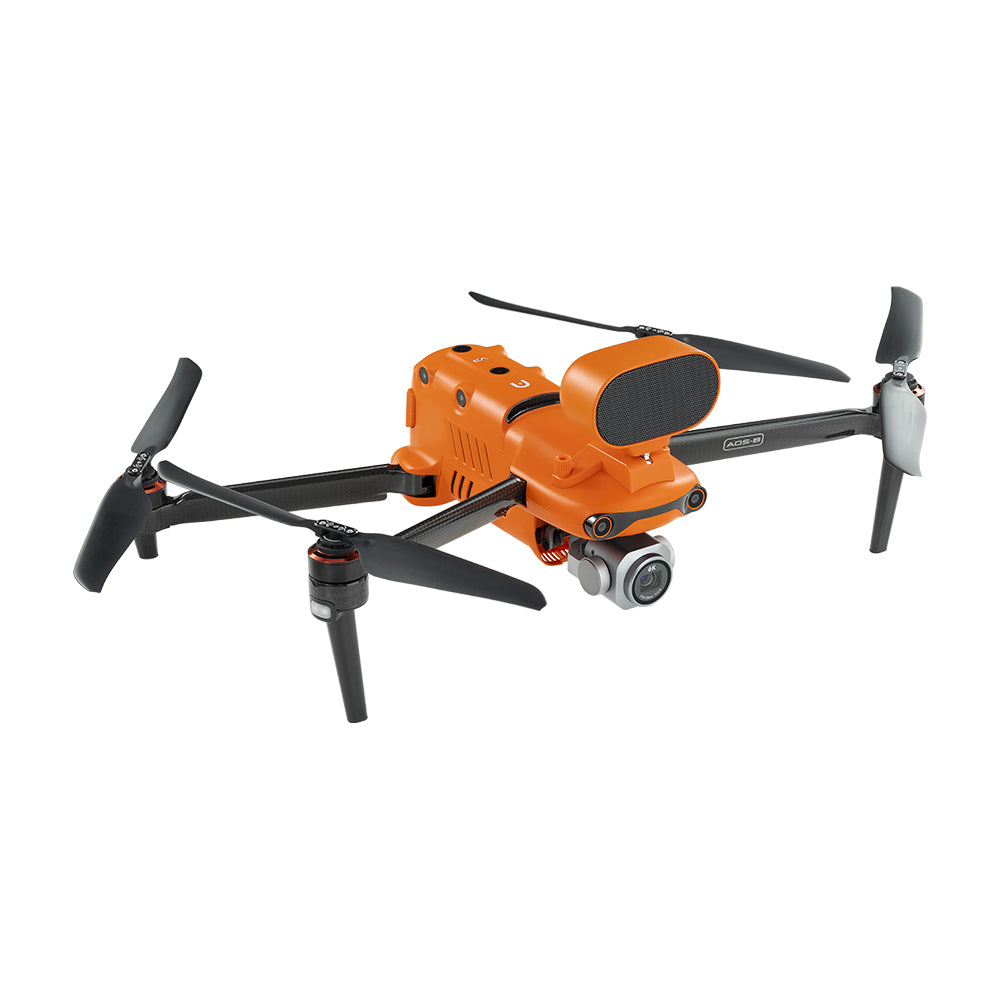

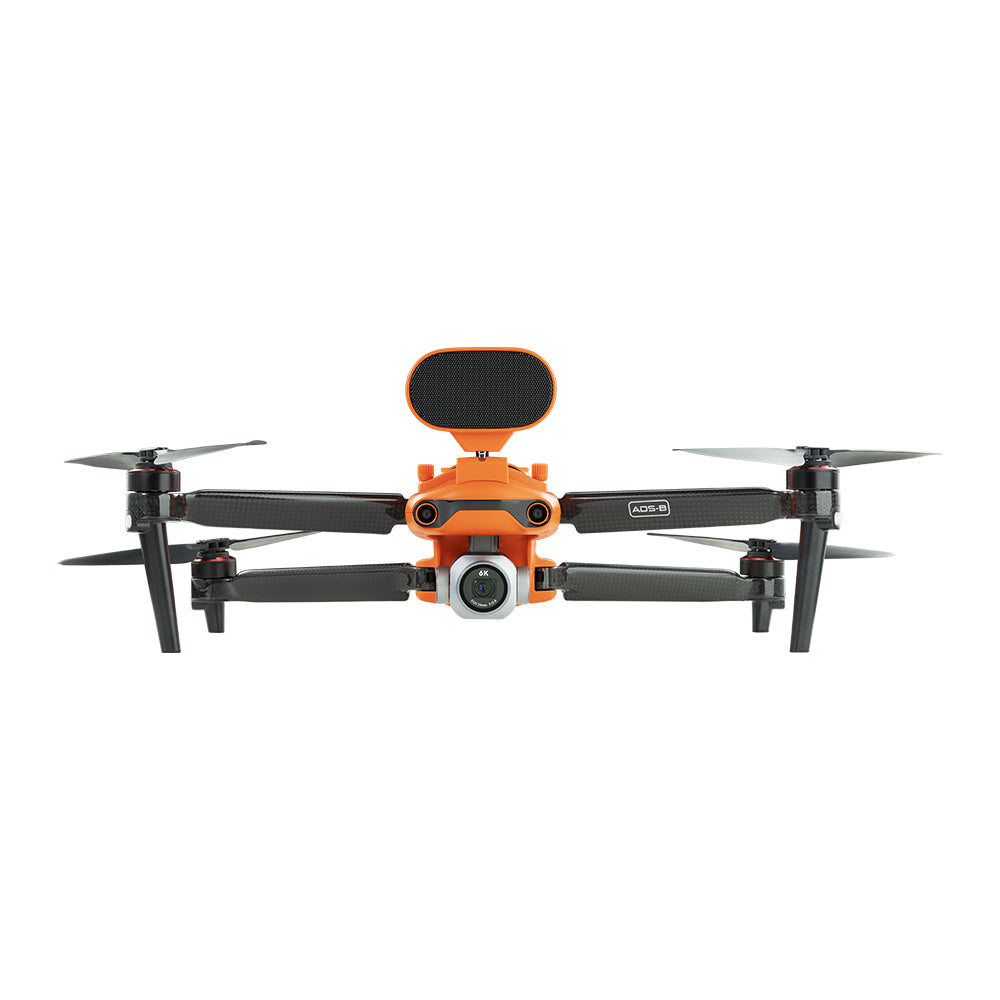

EVO II Pro 6K Enterprise Bundle V3
COMPACT, VERSATILE, POWERFUL
EVO II Enterprise V3 integrates a superior imaging system, an upgraded 15km image transmission (SkyLink 2.0) and additional accessories in order to meet different aerial needs including inspection, search and rescue, law enforcement, fire fighting, and more. The foldable design empowers industry users with an efficient and portable aerial work tool.
Moonlight Algorithm 2.0, SkyLink 2.0 Transmission, Modular Accessories, Centimeter-level Positioning with RTK, ADS-B Signal Receiver, 360° Obstacle Avoidance
All New 6K 1" CMOS Camera
See clearer with Sony's new 20 megapixel 1 inch CMOS image sensor, the EVO II Pro Enterprise V3 supports up to 6K video resolution with greater dynamic range, stronger noise suppression, and higher frame rates.
Aperture Range of F2.8 to F11
The lens's adjustable aperture range of f2.8 to f11 and a maximum ISO of 44000 enables the photographer to enhance their control and creative freedom.
Excel in Low Light
EVO II Pro Enterprise V3 brings you Autel's Moonlight Algorithmn 2.0 with additional noise reduction processing. Paired with V3's upgraded CMOS, succeed in operations with minimal lighting or in harsh lighting situations at night.
Zoom in for the Details
EVO II Pro Enterprise V3 supports 3x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.
Accident Reconstruction
EVO II Pro Enterprise V3 is excellent for rapid accident reconstruction with built in mission planning, and is compatible with Pix4d, Drone Deploy and Skyebrowse.
Greater Dynamic Range with 4K HDR
4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments.
SkyLink 2.0 Video Transmission
"The EVO II Enterprise V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.
- 15KM: Fly farther with HD video transmission up to 15km.
- QHD: Obtain critical details with QHD video within 1km.
- 2.4G/5.8G/900MHz: Support tri-band communication and can automatically frequency hop for maximum anti-interference capability"
*900MHz working frequency is only applicable for FCC countries.
Dedicated Enterprise Airframe
-
42 Minutes of flight time
Large propellers and revised flight algorithms gives the EVO II Enterprise V3 the longest flight time in its category. -
Extended Thermal Vents
EVO II Enterprise V3 has additional thermal vents for additional heat dissipation, prolonging battery life. -
Longer Carbon Fiber Arms
EVO II Enterprise V3's Carbon Fiber Arms and longer propellers provide additional rigidity and flight stability to the EVO II Enterprise Platform. -
Quieter Acoustic Signature
Fly closer without being noticed with EVO II Enterprise V3's new propeller design. The Enterprise is inaudible to the ear at around 190 meters high (623 ft).
Safety in Design
-
360° Obstacle Avoidance
Equipped with 12 visual optical sensors, which integrates 19 sets of sensors including the main camera, ultrasonic wave, and IMU to build a three-dimensional map of the drone and its surroundings in real time. The sensors are strategically placed to minimize blindspots on the drone so EVO II Enterprise V3 can automatically stop near obstacles.
*Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires. -

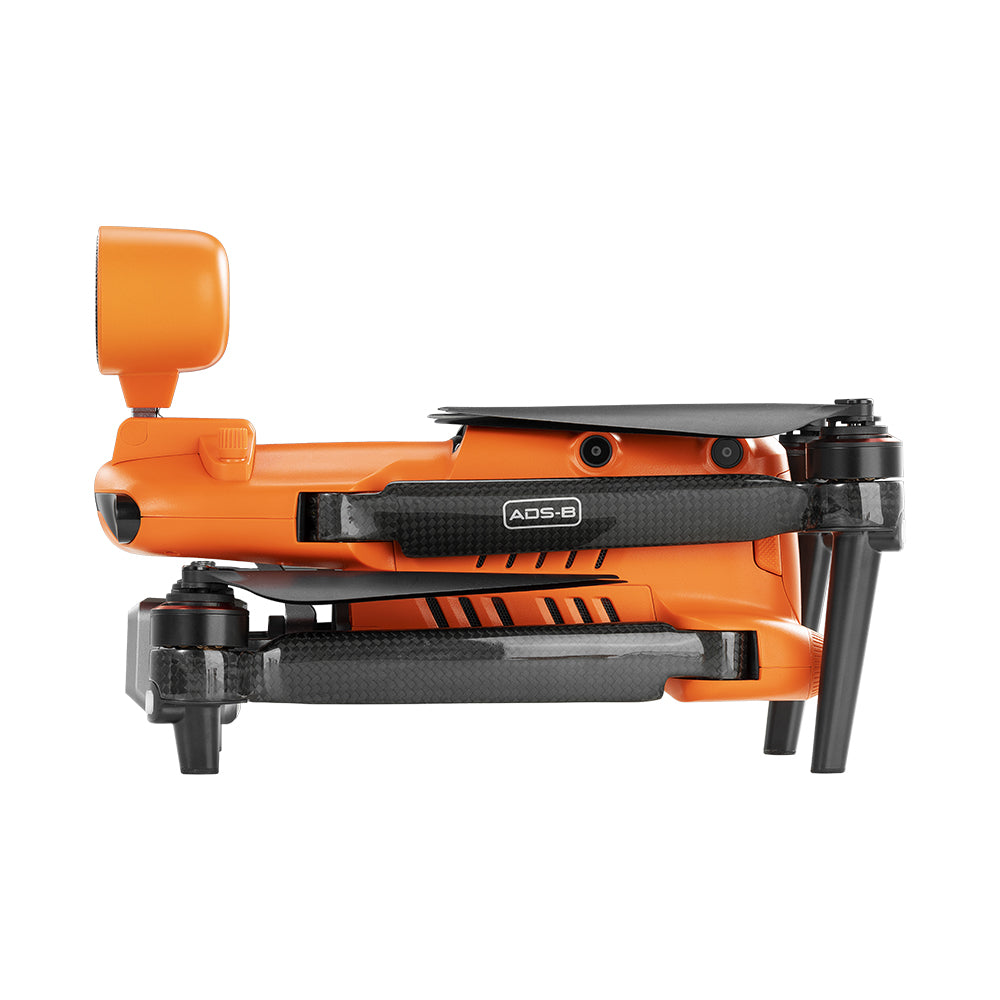

ADS-B Receiver
Detects the presence of any manned aircraft nearby emitting an ADS-B signal, giving the operator enough time to take evasive measures to avoid mid-air collisions.

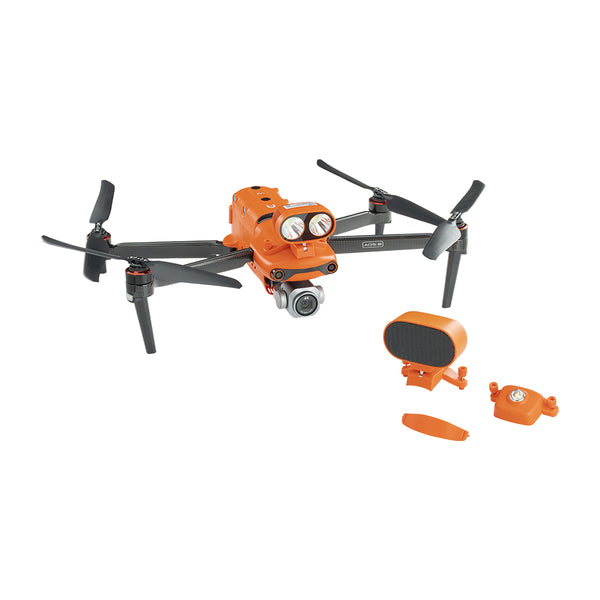

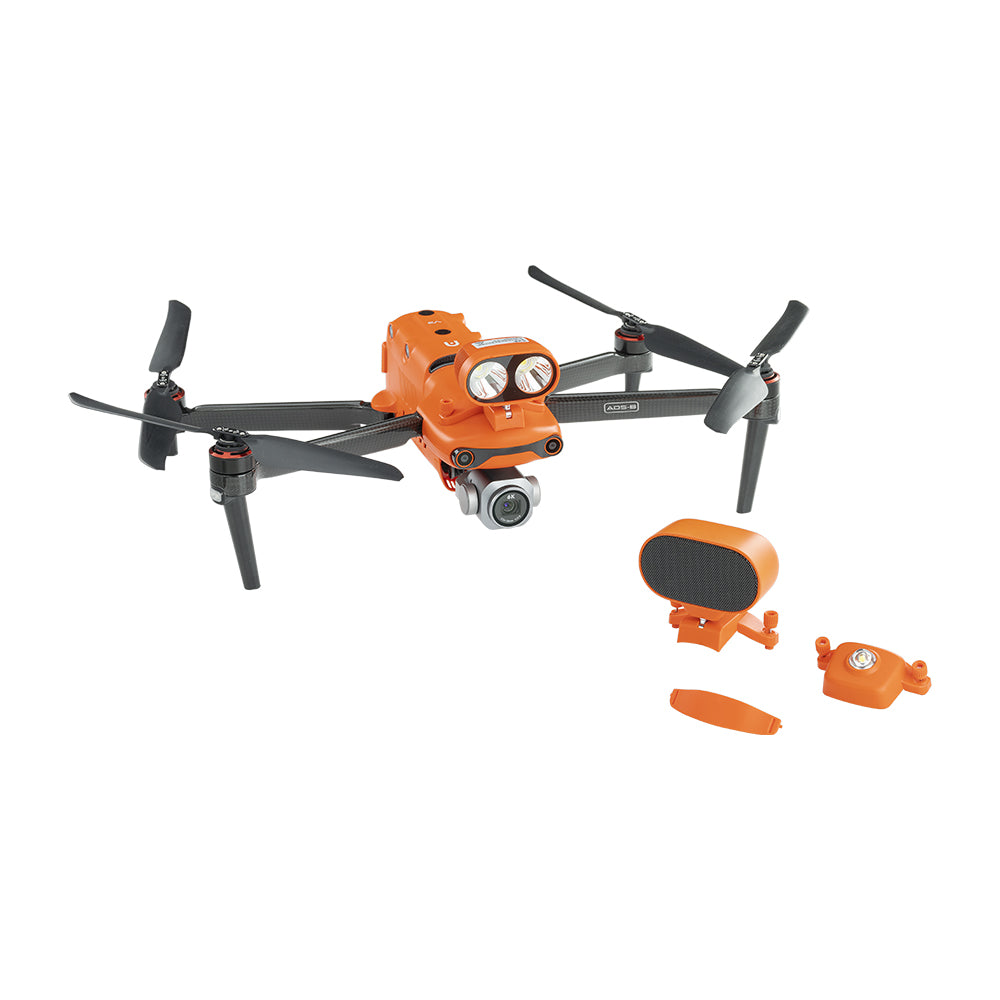

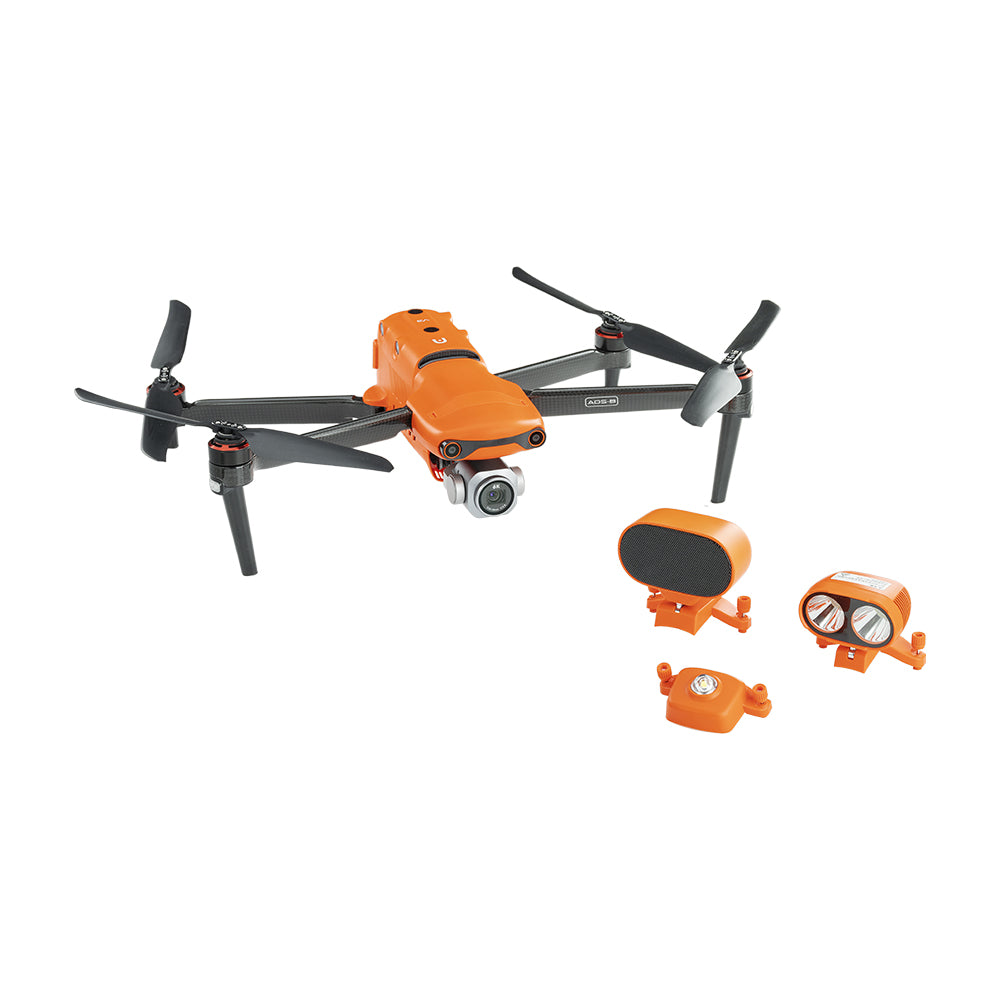

Mission Versatility

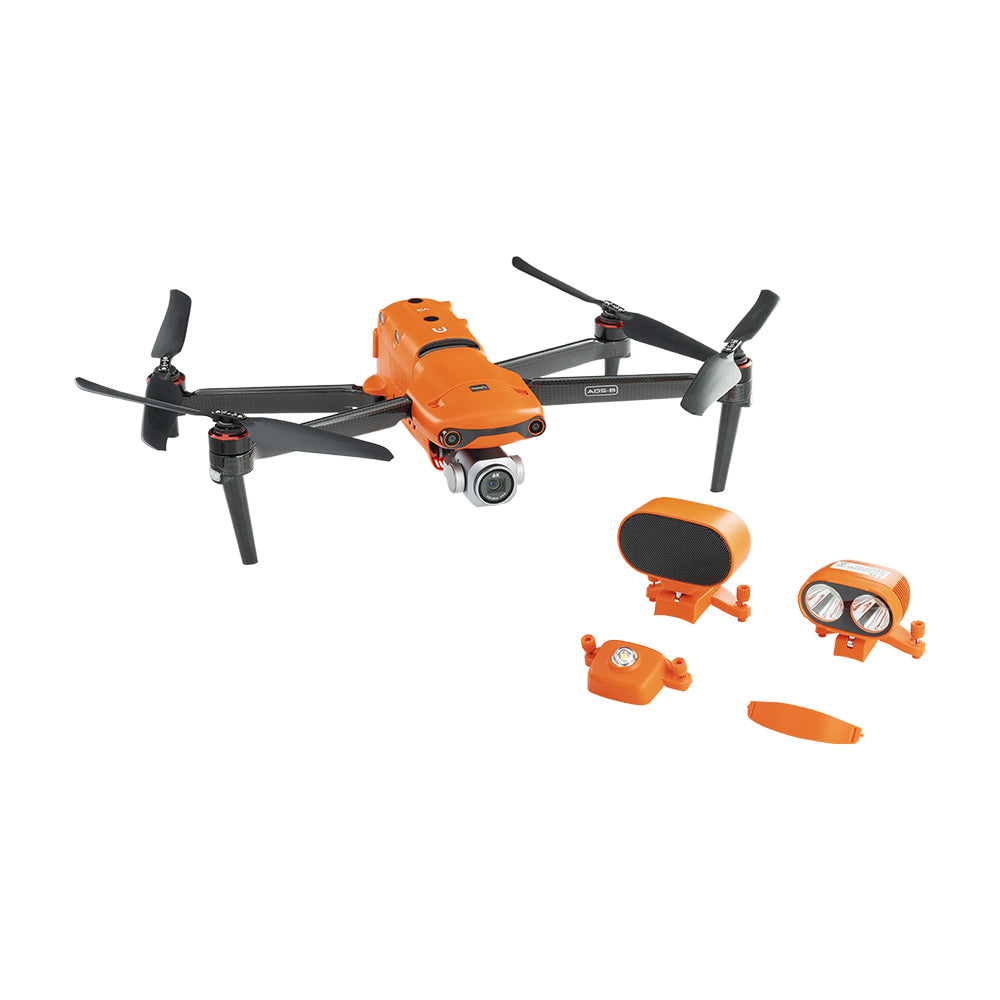

With an expanded selection of accessories at its disposal, the EVO II Enterprise V3 can evolve from a simple imaging tool to a multifunctional flight platform that can adapt to different scenarios.
-
Strobe
Indicate the location of the aircraft at night to avoid air traffic accidents. Compliant with FAA regulations for night flying, visible over 3 Miles away. -

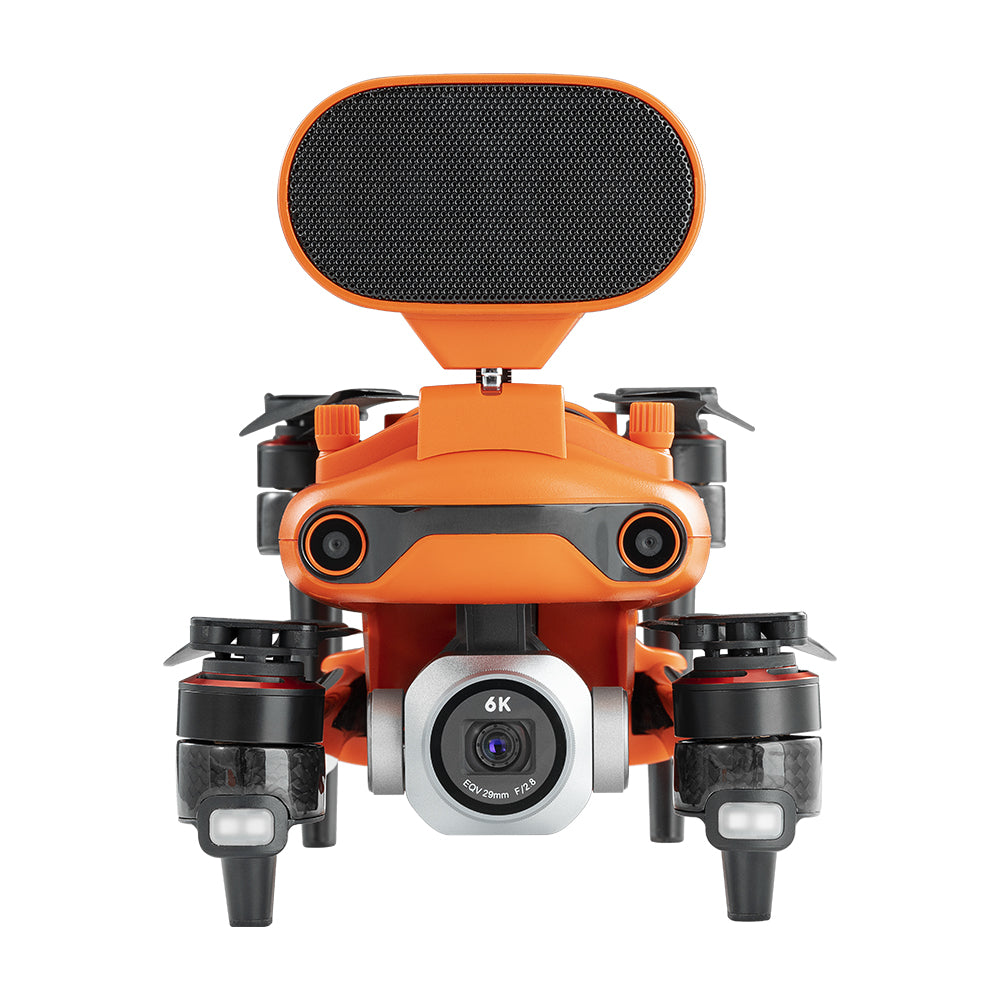

Loudspeaker
Enables effective on-site communication through long-distance live broadcasts and prerecorded audio loops. -
Spotlight
Beams a powerful, long-distance aerial light when searching or shooting at night. -

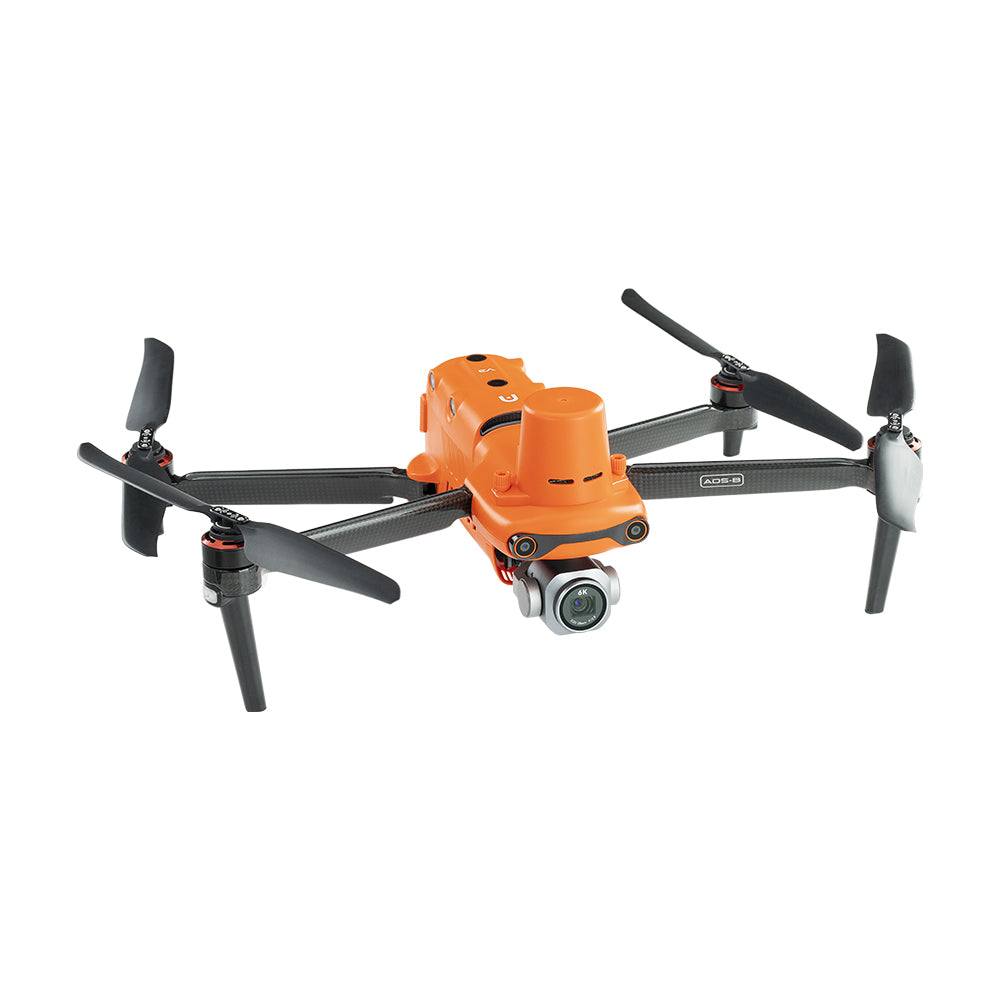

RTK Module（Optional）
Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
Autel Smart Controller V3
Smart Controller V3's 7.9-inch, 2000nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.
7.9-inch HD Touch Screen, 2000nit Maximum Brightness, 4.5-Hour Long Battery Life, -20℃ to 40℃ Operating Temperature, IP43 Resistance
Broadcast with Live Deck 2
Broadcast live mission intel to other personnel in the operation for enhanced situational awareness and critical decision making. The EVO II Enterprise V3 is compatible with Live Deck 2, which offer multiport streaming to monitors and Wifi support for multiple smart phones.
1080P/60FPS Video Stream; Three Auto-Switch Bands; 12km Transmission Range; 5-hr Battery Life; IP43 Resistance
Applications
-
Public Safety
Assess threats from a safe distance, patrol an area during an investigation, or gather intelligence. -
Traffic Supervision
Monitor traffic flow over a larger area and crack down on traffic violations to improve safety for everyone on the road. -
Power Inspection
Zip between transmission towers to quickly spot structural damage or overheating electrical elements, saving time and labor costs. -
Firefighting
Soar above the flames to identify hotspots, locate victims, and monitor changing conditions, reducing the risk for crew members on the ground. -
Search and Rescue
Quickly locate missing persons by using automated mission modes to cover larger search areas in situations where every second counts. -
Mapping
Create cost-effective 3D maps of an area using high-resolution images up to 2cm GSD* with an vertical accuracy of 1cm and a horizontal accuracy of 1.5cm
Specifications
| EVO II Enterprise V3 Specifications | |
| Aircraft | |
| Takeoff Weight(Without Accessories) | EVO II Pro Enterprise：2.45 lbs (1110 g) EVO II Dual 640T Enterprise：2.51 lbs (1136.5 g) |
| Diagonal Length | 16.8 inches (427 mm) |
| Size(L*W*H) | 245*130*111mm（folded） 506*620*111mm（unfolded） |
| Max Service Ceiling Altitude | 4.3 miles (7000 m) MSL |
| Max Ascent Speed | 18 mph (8 m/s (Ludicrous) |
| Max Descent Speed | 9 mph (4 m/s) (Ludicrous) |
| Max Level Flight Speed | 45 mph (20 m/s) (Ludicrous) |
| Max angular velocity | 120°/s |
| Max tilt angle | 33° (Ludicrous) |
| Max Flight Time (no wind) | 42 min（without accessories） |
| Max Hovering Time (no wind) | 38 min（with strobe） 29 min（with spotlight） 34 min（with loudspeaker） 36 min（with RTK module） |
| Operating Temperature Range | 14℉ to 104℉ (-10℃ to 40℃) |
| Max Wind Speed Resistance | 39 - 46 mph (17-20 m/s) |
| Operating Frequency | 2.400 GHz - 2.4835 GHz； 5.725GHz - 5.850 GHz |
| Hovering accuracy | When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m |
| Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally) |
|
| Internal storage | 8GB |
| SD storage | max. support 256GB (UHS-3 or Class 10) |
| Gimbal | |
| Gimbal | 3-axis stabilization |
| Mechanical range | Tilt: -135° to +45°; Pan: -100° to +100° |
| Controllable rotation range | Tilt: -90° to +30°; Pan: -90° to +90° |
| Max control speed (Tilt) | 300°/s |
| Angular Vibration Range | ±0.005° |
| Remote controller and image transmission | |
| Operating frequency | 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only) |
| Transmission power | FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G |
| Max Transmission Distance (unobstructed, free of interference) | FCC：15km CE：8km |
| Display screen | 2048x1536 60fps |
| Battery | 5800mAh |
| Operating time | ~3 hours (Max. Brightness) ~4.5 hours (50% Brightness) |
| Charging time | 90 minutes |
| Internal Storage | ROM 128GB |
| Sensing system | |
| Sensing system type | Omnidirectional sensing system |
| Forward | Accurate measurement range: 0.5-18 m Effective sensing speed: <12m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
| Backward | Accurate measurement range: 0.5-16 m Effective sensing speed: <12m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
| Upward | Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: Horizontal: 65°, Vertical: 50° |
| Downward | Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: horizontal: 100°, vertical: 80° |
| Left and right | Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: horizontal: 65°, vertical: 50° |
| Operating Environment | Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |
| EVO II Pro Enterprise V3 visual camera | |
| Sensor | 1 inch CMOS; 20M pixels |
| Lens | FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity |
| ISO range | Video: 100-44000 Photos: 100-6400 |
| Shutter speed | Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates |
| Zoom | 1-16x (up to 3x lossless zoom) |
| Photo mode | Single shot/Burst shooting/AEB/Time Lapse/HDR |
| Maximum photo size | 5472*3648 (3:2) 5472*3076 (16:9) 3840*2160 (16:9) |
| Image Format | JPG (default) / DNG / JPG+DNG |
| Photo mode | 5472x3076P30/P25/P24 3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24 |
| Video format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max bitrate | 120Mbps |
| Supported file system | FAT32/exFAT |
