DJI - Matrice 350 RTK With H30T Hybrid Camera with Batteries & Charger

DJISKU: CP.EN.00000535.01SPC

Key Features:

Effortlessly Powerful Flight Performance:

  • Built tough with powerful propulsion and enhanced protection rating.
  • Excellent flight performance to handle a variety of challenges.

Stay Stable With New Transmission System:

  • O3 Enterprise Transmission: Supports triple-channel 1080p HD live feeds and a max transmission distance of 20 km.
  • Four-antenna transceiver system intelligently selects optimal antennas for transmission, enhancing anti-interference capabilities and transmission stability.

Zenmuse H30 Series Integration:

  • The all-weather, multi-sensor flagship integrates a wide-angle camera, zoom camera, infrared thermal camera, laser range finder, and NIR auxiliary light.
  • Employs cutting-edge intelligent algorithms for advanced perception and imaging, suitable for various operations including public safety, energy inspection, water conservation, and forestry.

The Matrice 350 RTK is designed to inject innovative strength into any aerial operation, making it an indispensable tool for professionals.

Enterprise Care: Basic - 1 Year
Price:
Sale price$21,189.00

Government Customers:

Government customers are eligible for 30 days terms based on the issuance of a confirmed original purchase order on government letterhead. If you are a government agency and will be issuing a purchase order with 30 day terms, please notify your account manager. Credit terms for government agencies are not automatic so please discuss with your Blue Skies Drones account manager when submitting your order. All orders placed on terms must be shipped to a verifiable government address and will require adult signature.

Non-Government Customers:

Blue Skies Drones accepts credit card payments, money orders, certified checks, and wire transfers for customer purchases according to the following schedule below:

Credit Card Payments: Up to $5,000 can be charged on a credit card without incurring additional fees.

  • All credit card orders must be shipped to the credit card's billing address and will require a signature upon delivery.
  • Any amount above $5,000 requires another payment option below.

Wire Transfers: You can use a wire transfer to pay any Blue Skies Drones invoice. Please contact us for a quote to get wire transfer information

Money Order or Certified Check: You can mail a money order or certified check to: Blue Skies Drones, 1319 Grand Avenue, Centralia, WA 98531

Please fill out the quote request form to begin the purchase process.

If this product is Special Order - This product takes time to order.

Please note all Special Orders are shipped out in the order they are received. Due to supply delays, we cannot confirm a shipment date at this time. Special Order Items are not cancellable nor returnable.

Talk to an Expert



Dale Hylton - Sales Engineer
10 Years Drone Experience

844-474-8833 x2

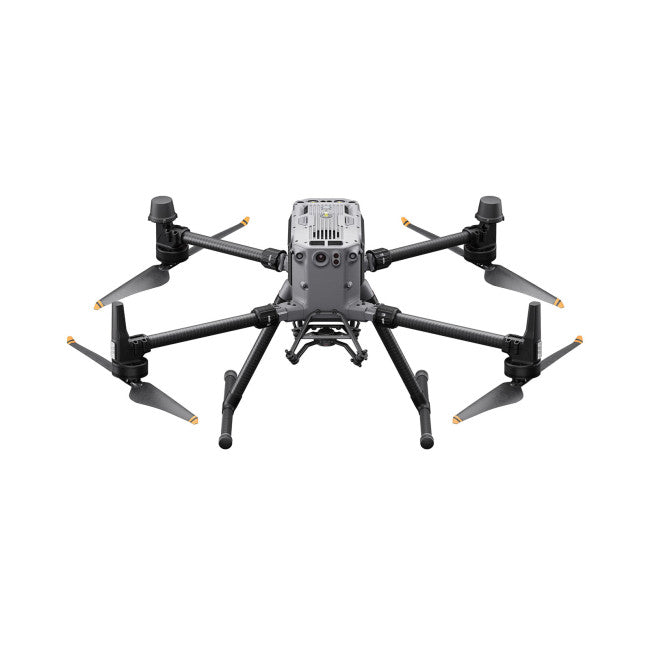

DJI MATRICE 350 RTK
Fully Powered to Forge Ahead

An upgraded flagship drone platform, the Matrice 350 RTK sets a new benchmark for the industry. This next-generation drone platform features an all-new video transmission system and control experience, a more efficient battery system, and more comprehensive safety features, as well as robust payload and expansion capabilities. It is fully powered to inject innovative strength into any aerial operation.

Effortlessly Powerful Flight Performance
Built tough, the Matrice 350 RTK features powerful propulsion, enhanced protection rating, and excellent flight performance, allowing it to tackle a wide variety of challenges effortlessly.

Stay Stable With New Transmission System
O3 Enterprise Transmission
Matrice 350 RTK adopts DJI O3 Enterprise Transmission, which supports triple-channel 1080p HD live feeds, and a max transmission distance of 20 km. Both the aircraft and the remote controller have a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. In this way, anti-interference capabilities are significantly improved, and transmission stability is optimized.

New Control Experience
DJI RC Plus
Equipped with a 7-inch high-bright screen, DJI RC Plus supports Dual Operator Mode and comes with a standard WB37 external battery that offers an operating time of up to six hours, meeting various operation needs.

Built Ready for Harsh Environments
IP54 rated, DJI RC Plus is dustproof and waterproof to operate reliably in bad weather. The operating temperature is -20° to 50° C (-4° to 122° F), supporting around-the-clock operation even in severely hot or cold environments.

Smooth and Efficient Control
There are several buttons and dials on the front, back, and top of the remote controller for fast operation. Button functions can be customized to fit users’ habits and deliver an intuitive and flexible experience.

DJI Pilot 2
The DJI Pilot 2 app has been further optimized to clearly present the mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.

Upgraded Battery System
New Dual-Battery System
The Matrice 350 RTK is equipped with a new TB65 dual-battery system, which supports battery hot swapping and allows for multiple flights without powering off. The battery can be charged up to 400 cycles, reducing the cost of a single flight.

Next-Gen Intelligent Battery Station
The new BS65 Intelligent Battery Station provides a one-stop solution for battery charging, storage, and transport.

Multiple Charging Modes
In Storage Mode, charge the battery to 50%, which is good for long-term storage. In Ready-to-Fly Mode, quickly charge multiple battery sets to 90% to start operation at any time and extend the battery life.

Intelligent Management
When the battery station is connected to DJI RC Plus, the DJI Pilot 2 app will display the battery status and health information. In addition, you can set the number of self-discharge days, update the firmware, export logs, and access other quick operations with one tap.

Effortless Transitions.
The battery station is designed with 360°-movement wheels for more convenient transportation and transitions

Powerful Payloads
The Matrice 350 RTK supports a single downward gimbal, dual downward gimbals, and single upward gimbal, and has an E-Port open interface. With a max payload capacity of 2.7 kg, the aircraft can carry up to three payloads simultaneously, meeting the needs of different operation scenarios like public safety, inspection, and mapping.

Intelligent Operation
High-Precision Mapping
Matrice 350 RTK supports Waypoint, Mapping, Oblique, and Linear Flight missions. You can use Terrain Follow or Smart Oblique for efficient data collection. Together with DJI Terra, you can quickly obtain HD 2D and 3D digital results, enabling high-precision and high-efficiency mapping operation.

Air-to-Ground Coordination
With functions like the high-precision PinPoint and cloud-based real-time mapping, the Matrice 350 RTK can link the air, ground, and cloud together. After the aircraft completes image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and ground operators. Both the remote controller and FlightHub 2 support point, line, surface drawing, and real-time uploading, and can cooperate with the aircraft to livestream the real-time operation view, breaking through communication barriers for air-to-ground collaborative operation.

Automated Precision Inspection
Through Live Mission Recording, the Matrice 350 RTK can generate and store flight route files that can be used at any time to realize automated operation and make repetitive inspection no longer time-consuming or effort-consuming. When using AI Spot-Check, the Matrice 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shooting and the quality of inspection operation.

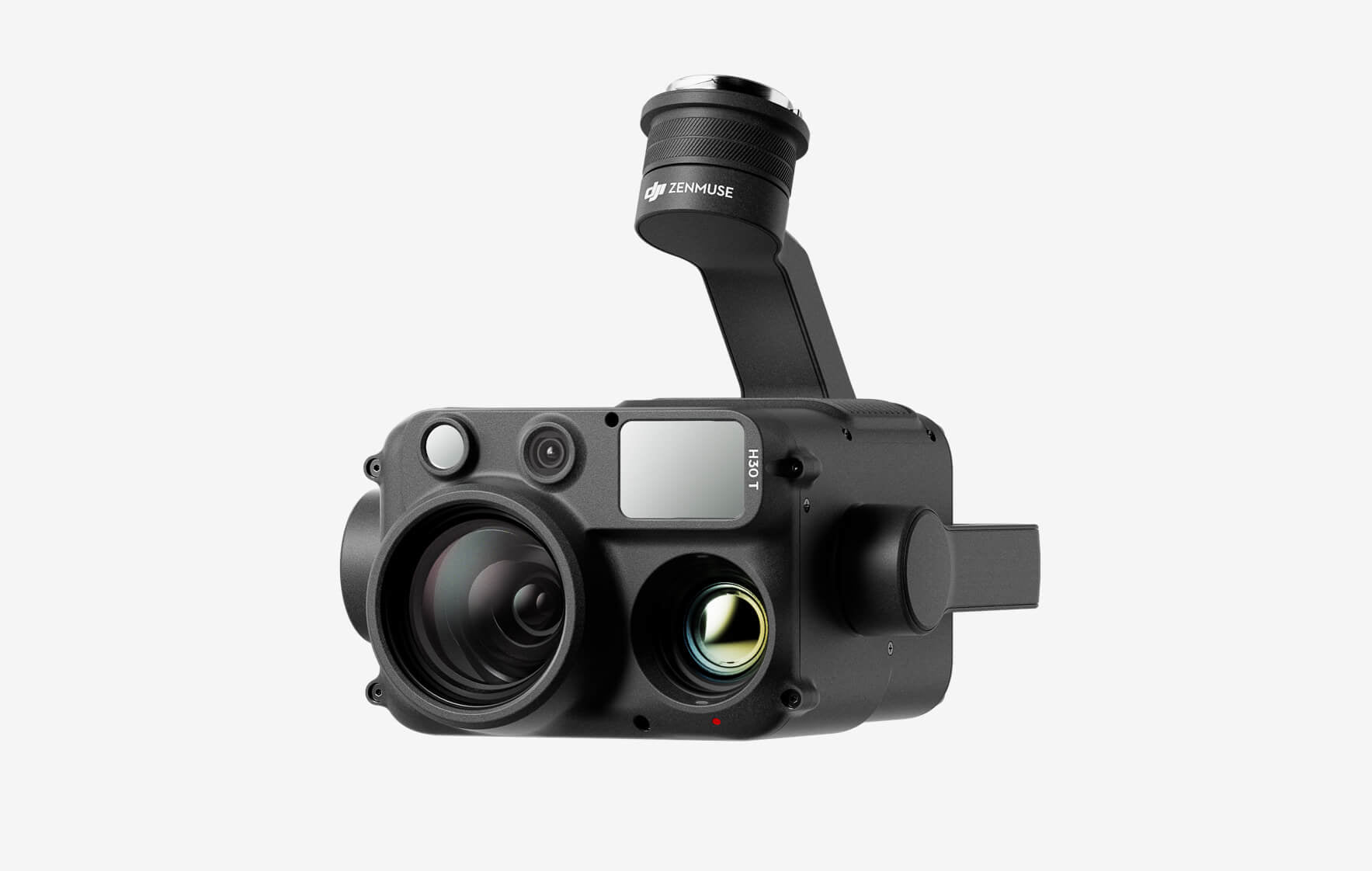

DJI ZENMUSE H30 SERIES

UNPARALLELED VISION, DAY OR NIGHT

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.

FURTHER AND CLEARER VISION
ENHANCED NIGHT VISION
MORE POWERFUL INFRARED PERFORMANCE
SMARTER MULTI-SCENARIO OPERATIONS
SUPERIOR ENVIRONMENTAL ADAPTABILITY
MORE RELIABLE INFORMATION SYNC AND RETENTION

VERSATILE PERFORMANCE, DAY AND NIGHT

WIDE-ANGLE CAMERA

Featuring a 1/1.3-inch CMOS sensor with an impressive 48MP effective pixel count, the wide-angle camera delivers crisp and detailed images even in challenging lighting conditions.

SUPERIOR ZOOM CAMERA

With a 1/1.8-inch CMOS sensor and 40MP effective pixel count, the zoom camera provides unparalleled clarity and precision, offering up to 34x optical zoom and 400x digital zoom capabilities.

POWERFUL INFRARED THERMAL CAMERA (H30T ONLY)

Boasting a resolution of 1280x1024, the infrared thermal camera enables precise temperature measurements and detection, with an expanded temperature measurement range from -20°C to 1600°C (-4°F to 2912°F).

LASER RANGEFINDER (LRF)

Offering a measurement range of 3-3000m (~9842 ft), the laser rangefinder provides accurate distance measurements, enhancing situational awareness and mission efficiency.

NIR AUXILIARY LIGHT:

Supporting night operations, the NIR auxiliary light ensures optimal visibility in low-light conditions, further augmenting the Zenmuse H30 Series' capabilities.

FURTHER AND CLEARER VISION

UP TO 34× OPTICAL ZOO AND 400× DIGITAL ZOOM

The Zenmuse H30 Series features a high-resolution 40MP zoom camera, supporting up to 34× optical zoom and an incredible 400× digital zoom. Compared to the previous generation, it not only observes subjects at greater distances but also captures more details.

MORE STABLE IMAGERY FROM THE ZOOM CAMERA

With DJI's latest image stabilization algorithm, the Zenmuse H30 Series can effectively diminish shake in telephoto footage, delivering stable and clear imagery for detailed power line inspections.

MAX 3000M LASER RANGE FINDER

The laser range finder boasts a measurement range up to 2.5 times greater than the previous generation, accurately capturing the position information of subjects within a range from 3 m to 3000 m, including linear distance from the camera, altitude, and GPS coordinates.

ENHANCED NIGHT VISION

SUPPORTS FULL-COLOR NIGHT VISION

Both the zoom and wide-angle cameras of the Zenmuse H30 Series can switch to Night Scene mode in low-light conditions, enhancing live view and recording quality. This ensures operational efficiency and accuracy at night, enabling continuous operation from day to night.

SUPPORTS BLACK AND WHITE NIGHT VISION AND NIR ILLUMINATION

In Night Scene mode, the Zenmuse H30 Series zoom camera supports IR Light for infrared enhancement and NIR illumination. It switches the live feed to a grayscale image by removing the IR filter, thereby strengthening the contrast between light and dark areas, making it easier to locate subjects. When the NIR auxiliary light is enabled, the zoom camera can benefit from additional NIR illumination, which is especially helpful for covert night surveillance and search-and-rescue operations.

MORE POWERFUL INFRARED PERFORMANCE

1280×1024 INFRARED RESOLUTION

The infrared thermal camera boasts a resolution of 1280×1024, 4× the previous generation, with up to 32× digital zoom. This allows for both an overview of the entire scene and the ability to zoom in on specific areas. At higher zoom levels, the Zenmuse H30T automatically activates a UHR (Ultra-High Resolution) Infrared Image function, ensuring the infrared images remain clear.

HIGH-RES MODE FOR PRECISE OBSERVATION

Zenmuse H30T supports three infrared gain modes: High Gain mode for more precise temperature measurement, Low Gain mode for a wider temperature measurement range, and the new High-Res mode, which is especially useful for observing objects, people, or animals with small temperature differences, making it highly practical for security, emergency, and search-and-rescue operations.

VISUAL AND IR CAMERAS SIMULTANEOUS ZOOM

The Zenmuse H30T's zoom camera and infrared thermal camera support Link Zoom, allowing operators to scale the visible light and thermal images in tandem and maintain the same viewpoint. This side-by-side comparison of image details helps locate the subject faster, increasing efficiency while saving effort.

TEMPERATURE MEASUREMENT RANGE FROM -20° TO 1600° C (-4° TO 2912° F)

With the installation of an infrared density filter, the infrared thermal camera can measure temperatures up to 1600° C (2912° F), 3× the previous generation. This is particularly useful for firefighting and high-temperature operations as it allows for more effective judgment of temperature changes and rapid locating of hotspots, increasing rescue efficiency.

  • Matrice 350 RTK Drone x 1
  • Zenmuse H30T Gimbal Camera x 1
  • Landing Gear x 2
  • 2110 Propellers Pair x 1
  • TB65 Intelligent Flight Battery x 2
  • Battery Station (BS65) x1
  • RC Plus Remote Controller x 1
  • WB37 Battery x 1
  • Spare Gimbal Damper x 4
  • Screws and Tools Set x 1
  • Manuals
  • Carrying Hard Case x 1

Aircraft

  • Dimensions (unfolded, without propellers)

  • 810×670×430 mm (L×W×H)
  • Dimensions (folded, with propellers)

  • 430×420×430 mm (L×W×H)
  • Diagonal Wheelbase

  • 895 mm
  • Weight (with single downward gimbal)

  • Without batteries:
    Approx. 3.77 kg

    With two TB65 batteries:
    Approx. 6.47 kg
  • Single Gimbal Damper’s Max Payload

  • 960 g
  • Max Takeoff Weight

  • 9.2 kg
  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.150-5.250 GHz (CE: 5.170-5.250 GHz)
    5.725-5.850 GHz

    In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information.
  • Transmitter Power (EIRP)

  • 2.4000-2.4835 GHz:
    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.150-5.250 GHz (CE: 5.170-5.250 GHz):
    < 23 dBm (CE)

    5.725-5.850 GHz:
    < 33 dBm (FCC/SRRC)
    < 14 dBm (CE)
  • Hovering Accuracy (with moderate or no wind)

  • Vertical:
    ±0.1 m (with vision positioning)
    ±0.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)

    Horizontal:
    ±0.3 m (with vision positioning)
    ±1.5 m (with GNSS positioning)
    ±0.1 m (with RTK positioning)
  • RTK Positioning Accuracy (RTK FIX)

  • 1 cm + 1 ppm (horizontal)
    1.5 cm + 1 ppm (vertical)
  • Max Angular Velocity

  • Pitch: 300°/s
    Yaw: 100°/s
  • Max Pitch Angle

  • 30°
    When in N mode and with the forward vision system enabled: 25°.
  • Max Ascent Speed

  • 6 m/s
  • Max Descent Speed (vertical)

  • 5 m/s
  • Max Tilted Descent Speed

  • 7 m/s
  • Max Horizontal Speed

  • 23 m/s
  • Max Flight Altitude

  • 5000 m
    When using the 2110s propellers and with the takeoff weight ≤ 7.4 kg.

    7000 m
    When using the 2112 High-Altitude Low-Noise Propellers and with the takeoff weight ≤ 7.2 kg.
  • Max Wind Speed Resistance

  • 12 m/s
  • Max Flight Time

  • 55 minutes
    Measured with Matrice 350 RTK flying at approximately 8 m/s without payloads in a windless environment until the battery level reached 0%. Data is for reference only. Actual usage time may vary depending on the flight mode, accessories, and environment. Please pay attention to reminders in the app.
  • Supported DJI Gimbals

  • Zenmuse H20, Zenmuse H20T, Zenmuse H20N, Zenmuse P1, and Zenmuse L1
  • Third-Party Payload

  • Supports only certified payloads developed based on DJI Payload SDK.
  • Supported Gimbal Configurations

  • Single downward gimbal
    Single upward gimbal
    Dual downward gimbals
    Single downward gimbal + single upward gimbal
    Dual downward gimbals + single upward gimbal
  • Ingress Protection Rating

  • IP55
    The IP rating is not permanently effective and may decrease due to product wear and tear.
  • Global Navigation Satellite System

  • GPS + GLONASS + BeiDou + Galileo
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)

Remote Controller

  • Screen

  • 7.02-inch LCD touchscreen; resolution: 1920×1200; max brightness: 1200 nits
  • Weight

  • Approx. 1.25 kg (without WB37 battery)
    Approx. 1.42 kg (with WB37 battery)
  • Global Navigation Satellite System

  • GPS + Galileo + BeiDou
  • Built-in Battery

  • Type: Li-ion (6500 mAh@7.2 V)
    Charging Type: Use the battery station or USB-C fast charger with a max power of 65 W (max voltage of 20 V).
    Charging Time: 2 hours
    Chemical System: LiNiCoAlO2
  • External Battery (WB37 Intelligent Battery)

  • Capacity: 4920 mAh
    Voltage: 7.6 V
    Type: Li-ion
    Energy: 37.39 Wh
    Chemical System: LiCoO2
  • Ingress Protection Rating

  • IP54
  • Operating Time

  • Built-in Battery: approx. 3.3 hours
    Built-in Battery + External Battery: approx. 6 hours
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Operating Frequency

  • 2.4000-2.4835 GHz
    5.725-5.850 GHz
  • Transmitter Power (EIRP)

  • 2.4000-2.4835 GHz:
    < 33 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC)

    5.725-5.850 GHz:
    < 33 dBm (FCC)
    < 14 dBm (CE)
    < 23 dBm (SRRC)
  • Wi-Fi Protocol

  • Wi-Fi 6
  • Wi-Fi Operating Frequency

  • 2.4000-2.4835 GHz
    5.150-5.250 GHz
    5.725-5.850 GHz
  • Bluetooth Protocol

  • Bluetooth 5.1
  • Bluetooth Operating Frequency

  • 2.4000-2.4835 GHz

Video Transmission

  • Video Transmission System

  • DJI O3 Enterprise Transmission
  • Antenna

  • 4 video transmission antennas, 2T4R
  • Max Transmission Distance (unobstructed, free of interference)

  • 20 km (FCC)
    8 km (CE/SRRC/MIC)
  • Max Transmission Distance (with interference)

  • Low Interference and Obstructed by Buildings: approx. 0-0.5 km
    Low Interference and Obstructed by Trees: approx. 0.5-3 km
    Strong Interference and Unobstructed: urban landscape, approx. 1.5-3 km
    Medium Interference and Unobstructed: suburban landscape, approx. 3-9 km
    Low Interference and Unobstructed: suburb/seaside, approx. 9-20 km

    Measured with FCC compliance in unobstructed environments with typical interference at a flight altitude of approximately 120 m. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app.

Vision System

  • Obstacle Sensing Range

  • Forward/Backward/Left/Right: 0.7-40 m
    Upward/Downward: 0.6-30 m
  • FOV

  • Forward/Backward/Downward: 65° (horizontal), 50° (vertical)
    Left/Right/Upward: 75° (horizontal), 60° (vertical)
  • Operating Environment

  • Surfaces with discernible patterns and adequate lighting (lux > 15)

Infrared Sensing System

  • Obstacle Sensing Range

  • 0.1-8 m
  • FOV

  • 30° (±15°)
  • Operating Environment

  • Large, diffuse, and reflective obstacles (reflectivity > 10%)

LED Auxiliary Light

  • Effective Illumination Distance

  • 5 m
  • Illumination Type

  • 60 Hz, solid glow

FPV Camera

  • Resolution

  • 1080p
  • FOV

  • 142°
  • Frame Rate

  • 30fps

Intelligent Flight Battery

  • Model

  • TB65
  • Capacity

  • 5880 mAh
  • Voltage

  • 44.76 V
  • Type

  • Li-ion
  • Energy

  • 263.2 Wh
  • Weight

  • Approx. 1.35 kg
  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Ideal Storage Temperature

  • 22° to 30° C (71.6° to 86° F)
  • Charging Temperature

  • -20° to 40° C (-4° to 104° F)
    When the ambient temperature is below 5° C (41° F), the battery will trigger the auto-heating function. Charging at low temperatures may reduce battery life. It is recommended to charge at 15° to 35° C (59° to 95° F).
  • Charging Time

  • With a 220V power supply, it takes approximately 60 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 30 minutes to charge them from 20% to 90%.
    With a 110V power supply, it takes approximately 70 minutes to fully charge two TB65 Intelligent Flight Batteries and approximately 40 minutes to charge them from 20% to 90%.

Intelligent Battery Station

  • Dimensions

  • 580×358×254 mm (L×W×H)
  • Net Weight

  • Approx. 8.98 kg
  • Compatible Stored Items

  • Eight TB65 Intelligent Flight Batteries
    Four WB37 Intelligent Batteries
  • Input Voltage

  • 100-120 VAC, 50-60 Hz
    220-240 VAC, 50-60 Hz
  • Max Input Power

  • 1070 W
  • Output Power

  • 100-120 V: 750 W
    220-240 V: 992 W
  • Operating Temperature

  • -20° to 40° C (-4° to 104° F)

Footnotes

  • The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Others

  • Guaranteed software updates until

  • 2025/12/31

Camera Specs

General

  • Product Name

  • Zenmuse H30 Series
  • Dimensions

  • 170×145×165 mm (L×W×H)
  • Weight

  • 920±5 g
  • Power

  • H30: 26 W
    H30T: 28 W
  • Ingress Protection Rating

  • IP54

    Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
  • Supported Aircraft

  • Matrice 300 RTK (requires DJI RC Plus)
    Matrice 350 RTK

Environment

  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)
  • Storage Temperature

  • -20° to 60° C (-4° to 140° F)

Gimbal

  • Stabilization System

  • 3-axis (tilt, roll, pan)
  • Angular Vibration Range

  • Hover: ±0.002°
    Flight: ±0.004°
  • Mounting

  • Detachable DJI SKYPORT
  • Mechanical Range

  • Tilt: -132.5° to +73°
    Roll: ±60°
    Pan: ±328°
    (Structural limit, not controllable range)
  • Controllable Range

  • Tilt: -120° to +60°
    Pan: ±320°
  • Operation Mode

  • Follow/Free/Re-center

Zoom Camera

  • Sensor

  • 1/1.8-inch CMOS, Effective Pixels: 40 MP
  • Lens

  • Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
    Aperture: f/1.6-f/5.2
    DFOV: 66.7°-2.9°
  • Focus Mode

  • MF, AFC, AFS
  • Exposure Mode

  • Manual, Auto
  • Exposure Compensation

  • ±3.0 (1/3 increments)
  • Metering Mode

  • Spot Metering, Average Metering
  • AE Lock

  • Supported
  • Electronic Shutter Speed

  • 1/8000-2 s
  • ISO Range

  • Single Shot: 100-25600
    Night Scene: 100-819200
  • Video Resolution

  • Single Shot: 3840×2160@30fps, 1920×1080@30fps
    Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
  • Video Format

  • MP4
  • Video Subtitles

  • Supported
  • Video Codec and Bit Rate Strategy

  • H.264, H.265
    CBR, VBR
  • Max Photo Size

  • 7328×5496, 3664×2748
  • Photo Format

  • JPG

Wide-Angle Camera

  • Sensor

  • 1/1.3-inch CMOS, Effective Pixels: 48 MP
  • Lens

  • Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
    Aperture: f/1.7
    DFOV: 82.1°
  • Focus Mode

  • MF, AFC, AFS
  • Exposure Mode

  • Manual, Auto
  • Exposure Compensation

  • ±3.0 (1/3 increments)
  • Metering Mode

  • Spot Metering, Average Metering
  • AE Lock

  • Supported
  • Electronic Shutter Speed

  • 1/8000-2 s
  • ISO Range

  • Single Shot: 100-25600
    Night Scene: 100-409600
  • Video Resolution

  • Single Shot: 3840×2160@30fps, 1920×1080@30fps
    Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
  • Video Format

  • MP4
  • Video Subtitles

  • Supported
  • Video Codec and Bit Rate Strategy

  • H.264, H.265
    CBR, VBR
  • Max Photo Size

  • 8064×6048, 4032×3024
  • Photo Format

  • JPG

Infrared Thermal Camera (H30T)

  • Thermal Imager

  • Uncooled VOx Microbolometer
  • Lens

  • Focal Length: 24 mm (equivalent focal length: 52 mm)
    Aperture: f/0.95
    DFOV: 45.2°
  • Digital Zoom Equivalent

  • 32×
  • Video Resolution

  • 1280×1024@30fps
  • Video Format

  • MP4
  • Video Subtitles

  • Supported
  • Video Codec and Bit Rate Strategy

  • H264, H265
    CBR, VBR
  • Photo Resolution

  • 1280×1024
  • Photo Format

  • R-JPEG
  • Pixel Pitch

  • 12 μm
  • Spectral Band

  • 8-14 μm
  • Noise Equivalent Temperature Difference (NETD)

  • ≤ 50 mk@f/1.0
  • Temperature Measurement Method

  • Spot Measurement, Area Measurement, Center Point Temperature Measurement
  • Temperature Measurement Range

  • High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter)
    Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)
  • Temperature Alert

  • Supported
  • Sun Burn Protection

  • Supported
  • FFC

  • Auto, Manual
  • Palette

  • White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron

Laser Range Finder

  • Wavelength

  • 905 nm
  • Measurement Range

  • 3-3000 m
    Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m‌*

    The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance.
    * Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians).
  • Measurement Accuracy

  • ≤ 500 m: ±(0.2 m+measurement distance×0.15%)
    ‌> 500 m: ±1.0 m
  • Laser Spot Size

  • @100 m: approx. 50×450 mm
    @1000 m: approx. 450×4500 mm
  • Safety Regulation Level

  • Class 1
  • Accessible Emission Limit (AEL)

  • 260 nJ
  • Reference Aperture

  • 18 mm
  • Max Laser Pulse Emission Power Within 5 Nanoseconds

  • 52 W

NIR Auxiliary Light

  • Wavelength

  • 850 nm
  • FOV

  • 4.6±0.6° (Round)
  • Safety Regulation Level

  • Class 1
  • Illumination Range

  • @100 m: Approx. 8m diameter circle

Special Features

  • Hybrid Optical Zoom

  • 34×
  • Max Zoom

  • 400×
  • Link Zoom

  • Supported
  • Click to Aim

  • Supported
  • High-Res Grid Photo

  • Supported
  • Night Scene

  • Supported
  • Timestamp

  • Supported
  • Smart Capture

  • Supported
  • Video Pre-Recording

  • Supported
  • UHR Infrared Image

  • Supported

Data Storage

  • Supported microSD Cards

  • U3/Class10/V30 or above is required, or use a memory card from the recommended list.
  • Supported File System

  • exFAT
  • Recommended microSD Cards

  • SanDisk Extreme Pro V30 A1 32GB microSDHC
    Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
    Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC

    Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.

Post-Processing Software

  • Mapping Software

  • DJI Terra, DJI FlightHub 2
  • Infrared Analysis Software

  • DJI Thermal Analysis Tool 3

Our on-line store is open 24/7 and we ship Monday through Thursday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 12:00 p.m. PST. Orders in high demand will have an estimated time listed on its product page and will ship according to the date listed.

Signature is required for most shipments.

*How long does it take for you to ship a product?*
This depends on your location, the method of shipping and the item you choose.

For in stock items inside the USA we typically ship by UPS and FedEx and for small items we ship by USPS. We typically ship items within 1-2 business days of the order for in stock shipment.

Ground Shipments can take up to 5 Business days from our Washington location. Express options are available by contacting us, but UPS and FedEx do NOT guarantee any shipments at this time.

If there are lithium batteries (most drones & ROVS), these cannot be shipped express.

USPS typically takes 2-3 business days for the smaller items by priority mail.

SHIPPING NOTES:

  • Orders under $50 = $25 Ground Shipping & Handling
  • Orders $50-499.99 = $20 Ground Shipping & Handling
  • Orders $500 or higher = FREE Ground Shipping & Handling (USA Only)
  • Alaska & Hawaii have unique shipping starting at $75
  • Contact us for Express Shipping Options
  • DHL & UPS Available for International Orders*


*International shipments are typically sent by DHL or UPS. Please note you are responsible for any customs fee, taxes and brokerage fees that may be due by importing an item into your country.

LEARN MORE BY VISITING SKYWATCH HERE

While not always legally required, having insurance to fly a drone is highly recommended for several reasons:

Why You Should Consider Drone Insurance:

  • Liability Coverage:
    • Protects you if your drone causes injury or property damage to others.

  • Damage Protection:
    • Covers repairs or replacement costs if your drone is damaged in an accident.

  • Theft Protection:
    • Provides coverage if your drone is stolen.

  • Compliance:
    • Some commercial operations and clients may require proof of insurance before allowing you to fly.

  • Peace of Mind:
    • Offers reassurance that you are financially protected against unforeseen incidents.


Types of Drone Insurance:

  • Liability Insurance:
    • Covers legal fees and damages if your drone causes injury or property damage.

  • Hull Insurance:
    • Covers physical damage to your drone.
    • Covers physical damage to you sensor (separately from the drone)

  • Personal Injury Insurance:
    • Covers injuries to yourself or your team while operating the drone.

  • Commercial Drone Insurance:
    • For businesses, covering multiple drones and operators, including comprehensive coverage options.


Where to Get Drone Insurance:

  • Specialized drone insurance providers
  • General insurance companies with drone policies
  • Aviation insurance companies

Legal Requirements:

  • Check local regulations as requirements can vary by country and region.
  • In the U.S., the FAA does not mandate drone insurance, but it’s advisable for all operators, especially for commercial use.

    In summary, while insurance might not be legally required, it is a smart and responsible choice to protect yourself and others while flying a drone.

      Check with your insurance provider to see if they cover the drone rental and flights.  If they do not, we highly recommend that you have insurance when you are flying drones.  We have found that Skywatch.ai offers some of the best options for Drone Insurance.

      LEARN MORE BY VISITING SKYWATCH HERE

      Frequently Asked Questions

      Do we offer Financing?  The short answer is YES we do!

      To determine the best financing option, we need to determine if you are interested in a personal financing option or if you will be using a business to finance your purchase.

      BUSINESS OPTIONS:

      We work with 2 different companies for financing.  Each Organization has their own criteria for purchases. These Financing options are for US customers only.

      1. BNC Financial
        Specializes in equipment funding from $500 and up. Follow this link to to the the financing application.
      2. First Pacific Funding
        Financing options from $5000 and up. Follow this link to go to the financing application.
      3. APPROVE Commercial Financing.  Add an item to your cart, then click on the APPROVE logo for an inline application on the right hand of your screen. Monthly Payments and rates vary depending on final terms.


       PERSONAL OPTIONS:

      There are also 2 options to work with on a person level.  Think of a this as purchasing on a credit card and paying it off in a short time period. These are Buy Now, Pay Later options. Keep in mind that you may also use the personal options for business too.
      1. Affirm
        Buy now, pay later without the fees.  Affirm is the smartest way to pay over time. Shop pretty much anywhere and pay at your own pace without any fees, so you can get the things you love without breaking your budget.

        Affirm is built into our website.  Click on the product you are interested in purchasing, then click on the 'Pre-qualify now' link.



        Click Here to see the details on how it works

      2. Shop Pay
        This payment option works similar to Affirm.  If you do not see the shop pay option on the product page, click on "More payment options.

        The Look for the button.



      We look forward to working with you on your adventure into the drone space.  We encourage you to look through some of our Industry pages above.

      Recently viewed
